Ingraham Oak Shelf Clock

November 16, 2007 | By | 1 Reply More

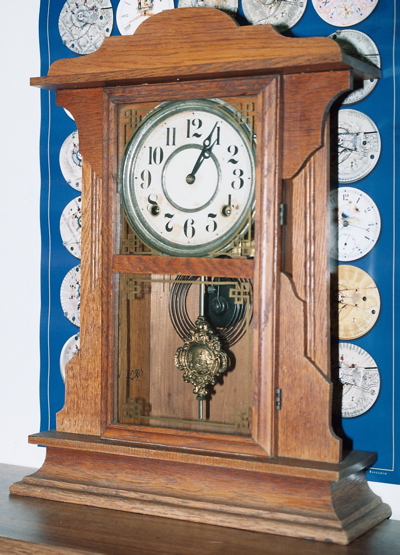

I just repaired an Ingraham oak shelf clock, with a date of 6 14 (June 1914) on the movement.

A previous repairer had installed a time mainspring that was way too strong (.018 inch thick), which had caused about 50% tooth wear on the time mainwheel. After the overhaul, I installed a Merritt’s P1496 mainspring 3/4 inch wide, 0.0155 inch thick, and 96 inches long. This gives a moderate amount of overswing to the pendulum, only time will tell if the power is sufficient to reliably run the clock for a long period. If not, I will install a spring about 0.0165 inch thick.

The strike train has its original mainspring of 3/4 x 0.0172 inches.

My job 4469.

Follow up: On 2/28/08, the clock came back because it would sometimes stop at three minutes before the hour. I did two things to correct this:

  1. Smoothed the tip of the strike locking lever.
  2. Replaced the time mainspring with one of the new Merritt’s 3/4 x 0.0165 x 96 inch spring.

Share this post:

Facebooktwittergoogle_pluspinterestlinkedin

Tags:

Category: American Clock Repair

Last updated: November 27, 2009

Comments (1)

Trackback URL | Comments RSS Feed

  1. Deana Bowman says:

    I inherited a clock identical to the one pictured here. The label is on the back, but is tattered. How do I find out what year it was manufactured? It seems to be in pretty good shape, but needs a key and a new pendulum. How do I determine a value on it?

    I really appreciate any information you can give me. Thanks so much!
