Gilbert Tambour Mantel Clock with Bim-Bam Striking

June 9, 2010 | By | 4 Replies More

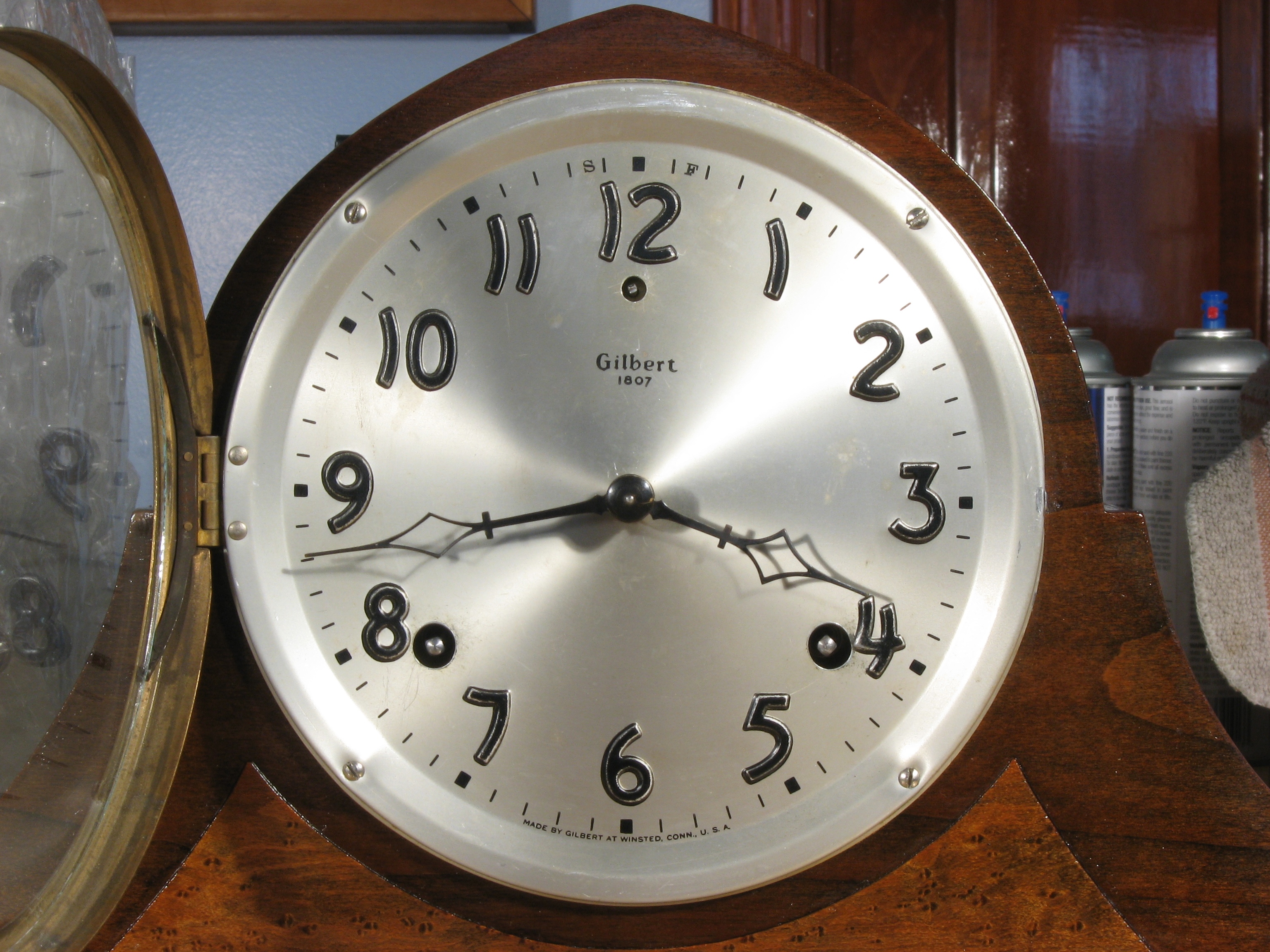

I just repaired this Gilbert tambour mantel clock that was made around the 1930s. It has bim-bam strike on the hour and half-hour. Height 9 1/2 inches, width 21 5/8 inches. Dial time track 5 3/8 inches. The aluminum dial is labeled:

Gilbert / 1807 / Made by Gilbert in Winsted, Conn., U.S.A.

The following movie shows the bim-bam striking:

The movement needed a lot of pivot polishing. The train pivots had moderate wear. The mainwheel pivots were very rough, and had probably left the factory this way!

The original 0.0175 inch thick strike spring was broken. The time mainspring was a previous replacement that was too strong: a Usibel France 0.00183 inch thick. I installed the following new mainsprings:

  • Time: R & M 83065 (same as their 77.308) 3/4 x 0.016 x 96 inches
  • Strike: R & M 77.308 3/4 x 0.0165 x 96 inches

The following movie shows the escapement motion when run down 8 1/2 days and when fully wound:

Repair job 5017.
