Ansonia “Burton” Oak Kitchen or Shelf Clock

February 26, 2015 | By | Reply More

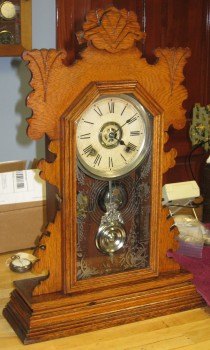

I repaired this Ansonia “Burton” oak shelf clock. It is in nice, all-original condition including dial and door glass. About 35% of the label on the back of the case remains. This clock is 22 1/2 inches tall. The movement is 8-day time and strike.

IMG_9213 IMG_9214 IMG_9220See more photos.

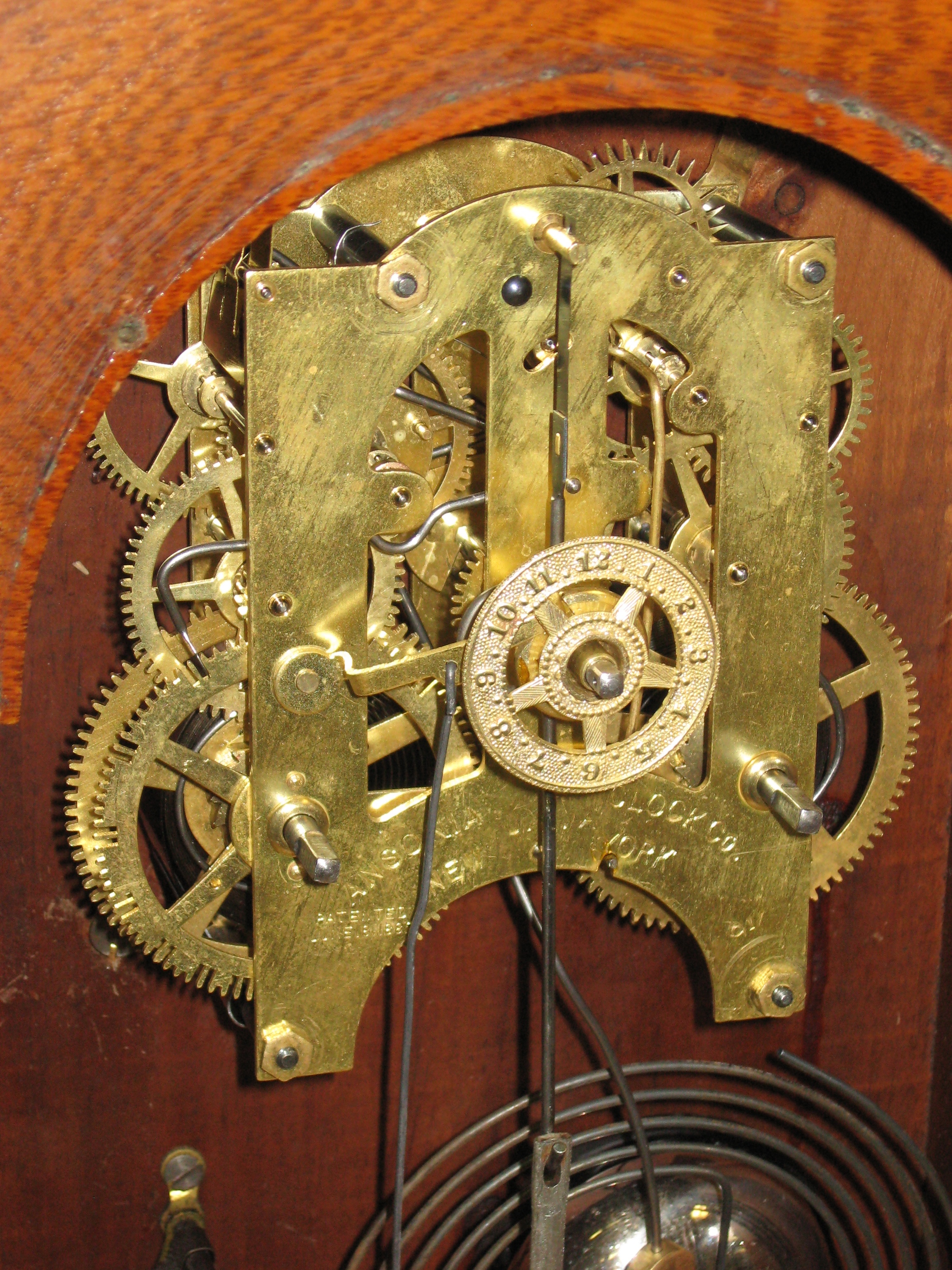

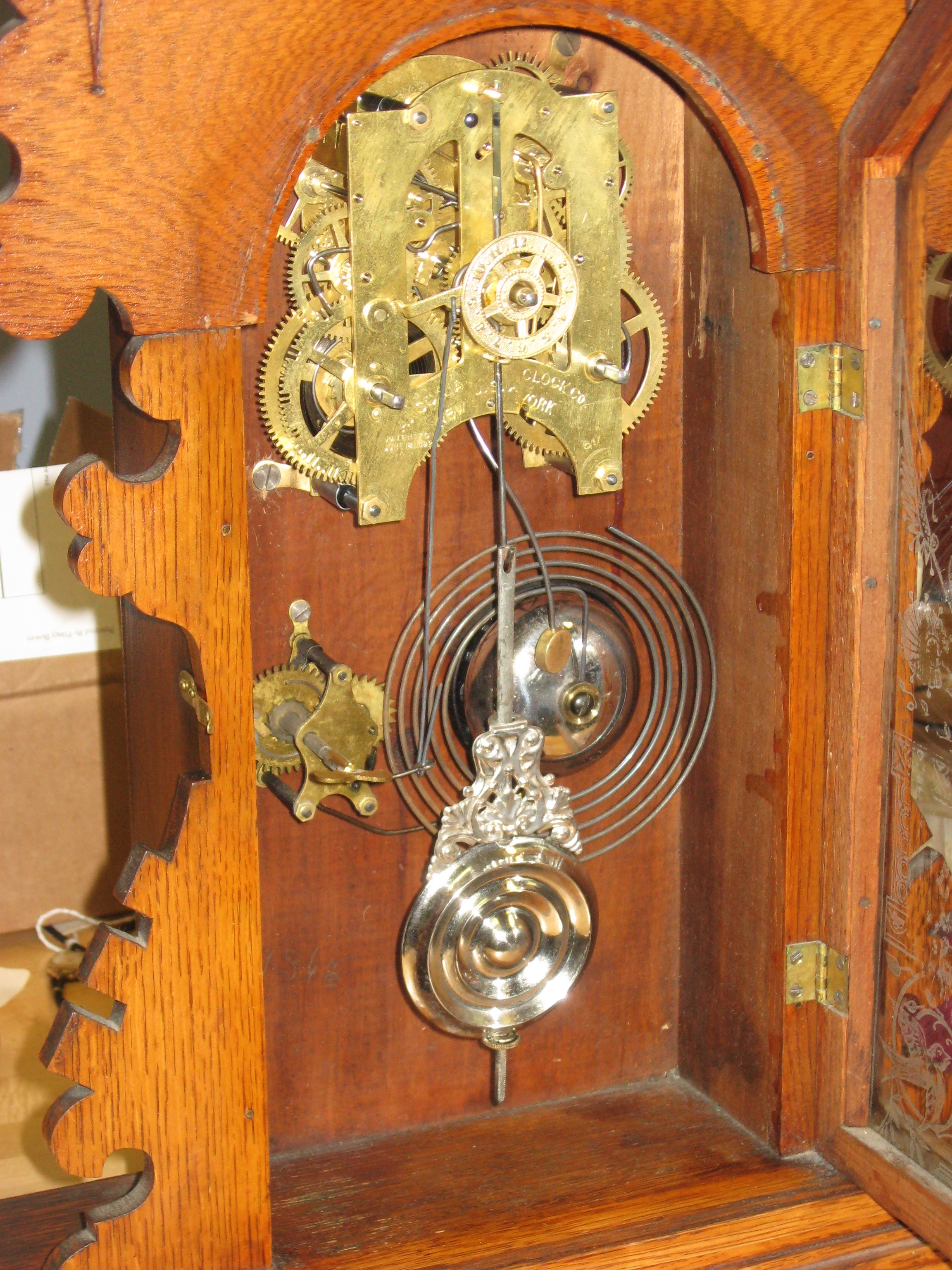

Repair job 6396. This is the “4 pillar” movement, which needs thin mainsprings. As received, both mainsprings were not original and were too strong. The time spring was 0.0175 inch thick, and the strike spring was 0.016 inch thick. I installed the following mainsprings:

  • Time: 3/4 by 0.0145 by¬† 120 inches (this is a hard to find spring and I may run out of them soon);
  • Strike: A used Usibel France mainspring measuring 3/4 by 0.014 inch.

I tightened the clicks, re-pinned 5 pinions (two had bent wires and one had worn wires). I polished the pivots and installed 14 bushings.
