Seth Thomas Electric Mantel Clock with Hour and Half-Hour Strike made in 1946.

December 16, 2015 | By | Reply More

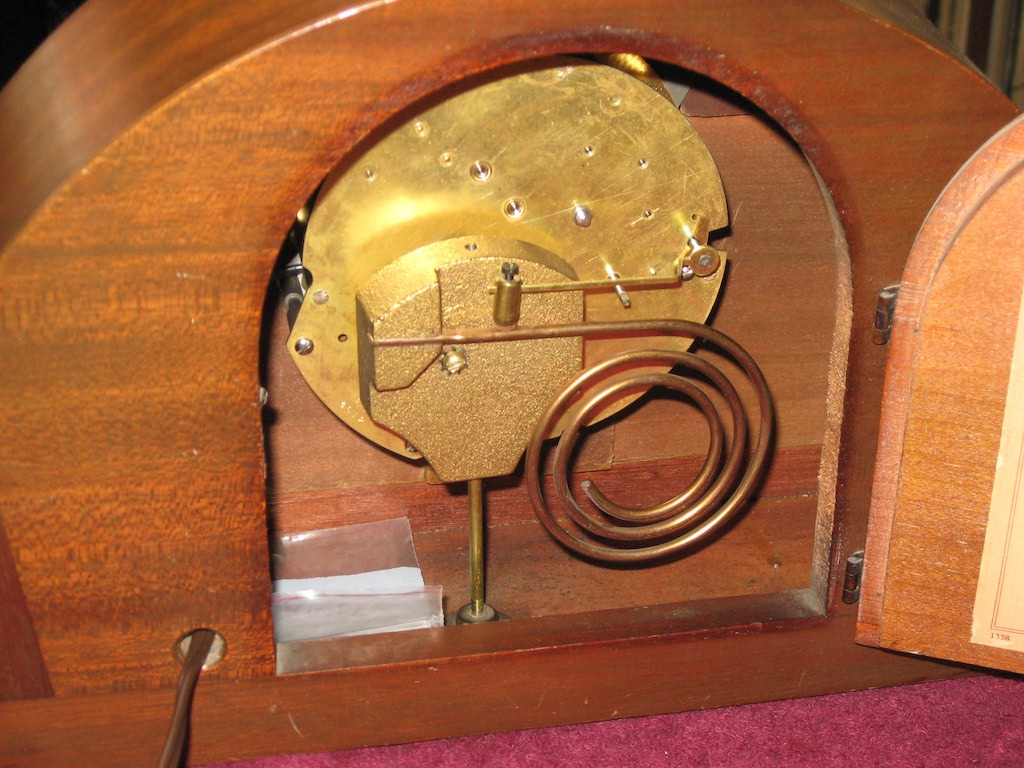

I repaired this Seth Thomas electric striking mantel clock in a modern-style mahogany case. The movement had a lot of wear, and a pivot of one gear was completely worn off!

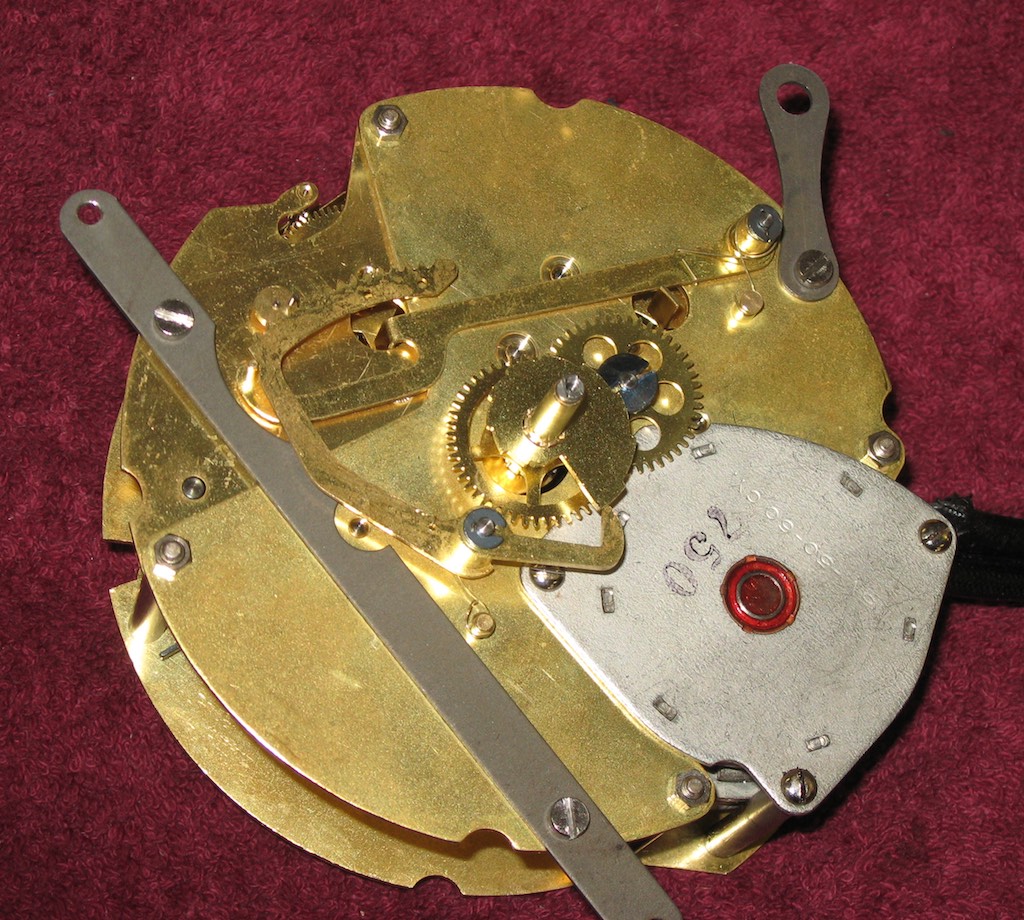

This clock uses the Sangamo synchronous motor. The date code on the movement is 46-12 (December 1946).

IMG_3522 IMG_3524IMG_3497

See more photos.

Repair job 6580. I replaced gear T5, as one pivot was completely worn away, and its other pivot was 50% worn. I polished the other  pivots and installed 17 bushings.

The motor turns the hands and winds a mainspring that runs the striking. The mainspring has a brace end so it will slip and not overwind. I reduced the brace tension so it wouldn’t wind as far, to reduce future wear. As received, the mainspring wound up 9.5 turns before slipping. I reduced the tension so it would wind 6 to 7 turns.
