Ingraham “Colby” Oak Mantel Clock, 1924

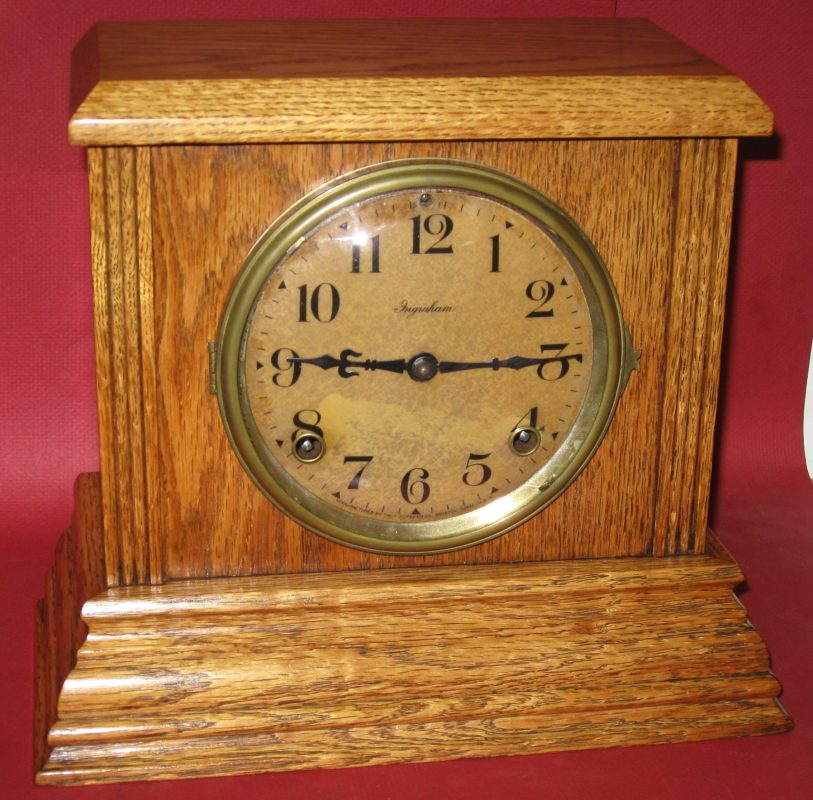

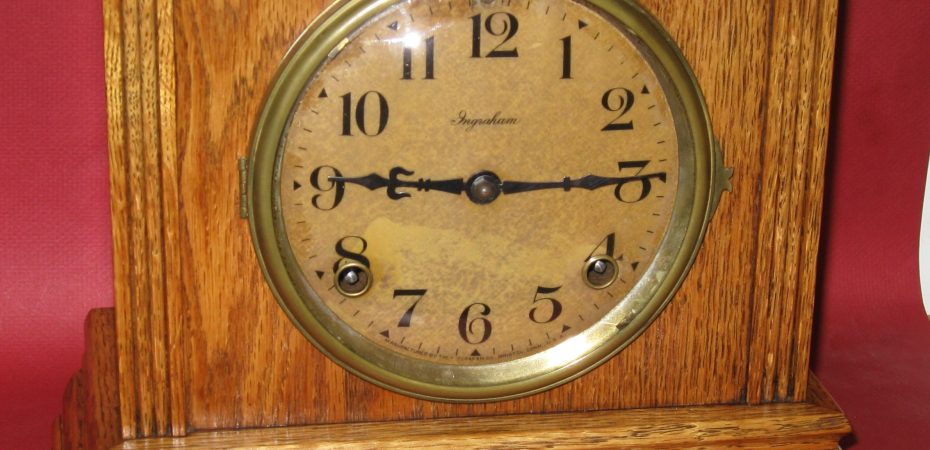

I repaired this Ingraham oak cased mantel clock for a customer. It appears to be the “Colby” model, as shown in the 1927 – 1928 Ingraham catalog. This example is dated 12 24 (December 1924) on the movement. The case is 9 3/4 ” tall and 11 1/4″ wide, and the minute hand is 2 1/4″ long. The dial is paper covered with celluloid. This 8-day clock strikes the hour and half-hour.

The similar models “Cody” and “Colgate” are also shown in the Ingraham catalog and they call them the “College Assortment”.

See more pictures.

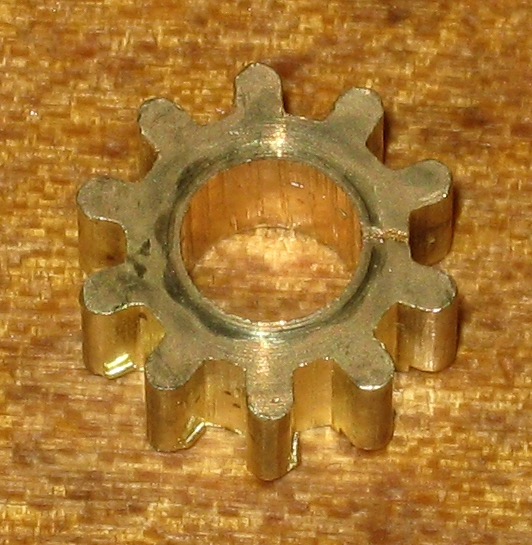

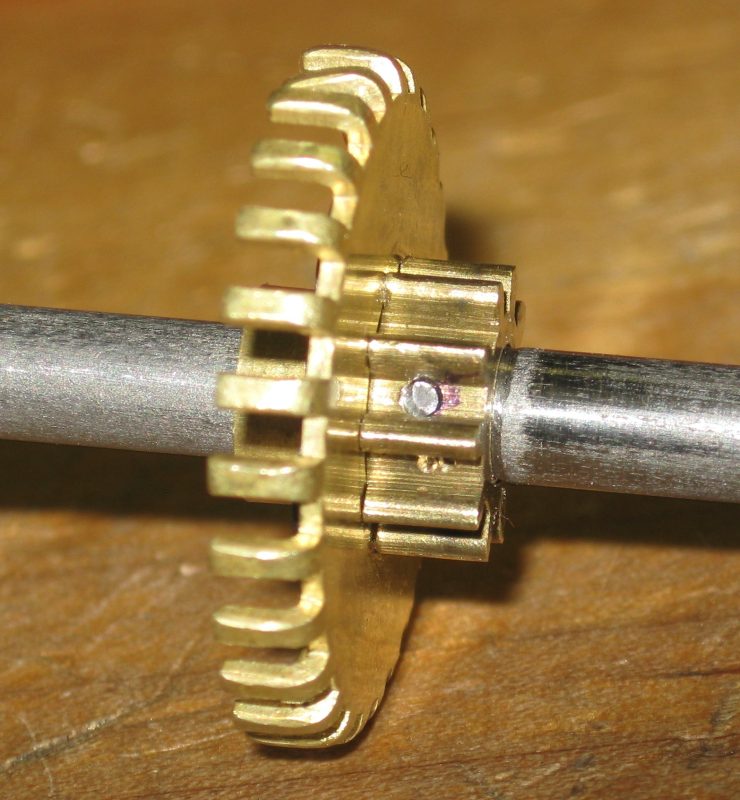

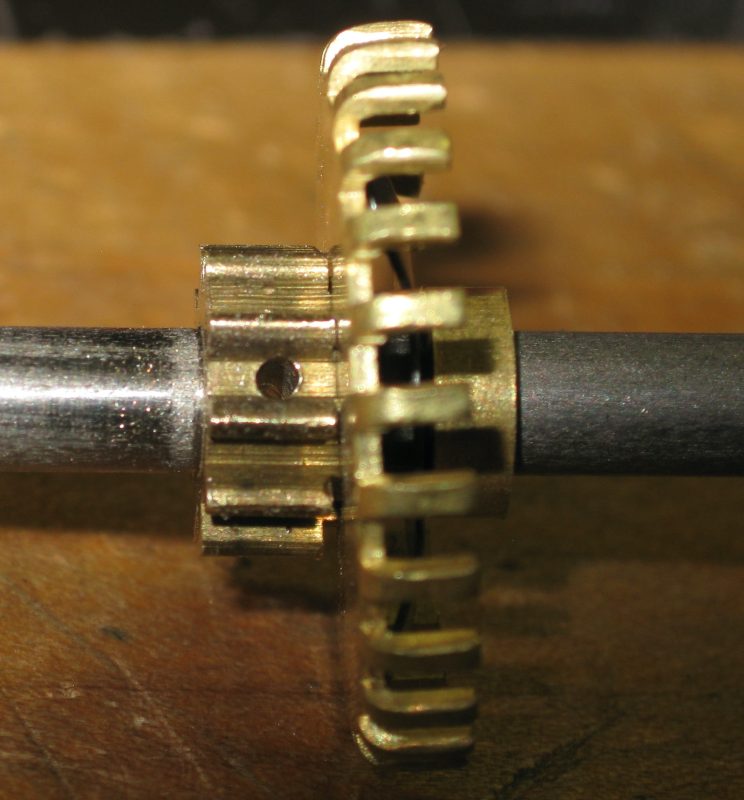

Repair job 8766. The cannon pinion had split, so I found a replacement from another old Ingraham movement. I cross-drilled the pinion and center arbor and inserted a pin to hold the pinion in place. The original was driven on with a tight friction fit, which caused it to split. The hand set tension washer applies pressure to the pinion, so it needs to be secure or it won’t stay in place.

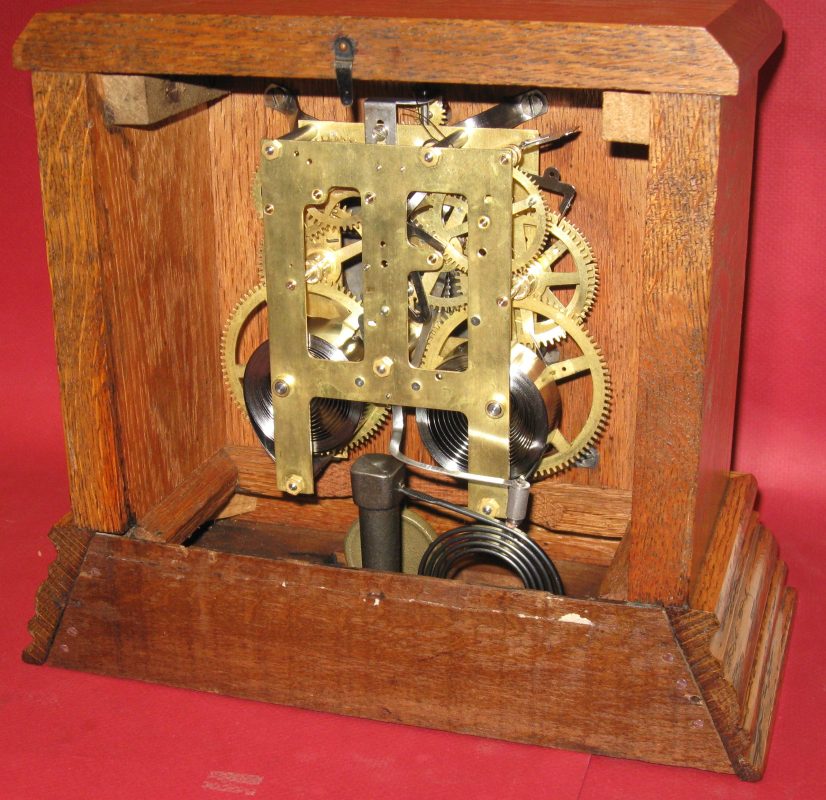

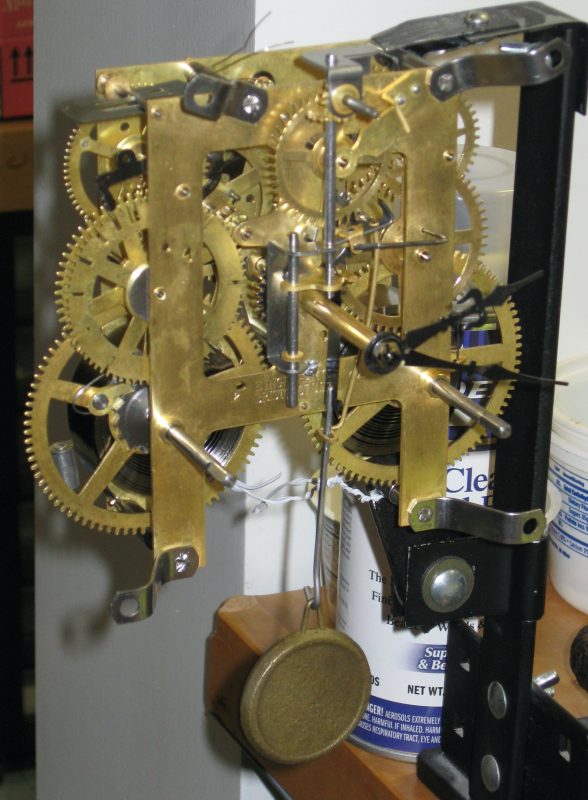

I polished the pivots, installed 12 bushings, replaced the thin brass clicksprings with steel spring wire, and secured gear S3 on its hub.

The strike mainspring was a replacement that was too thick (0.0192 inch!). The time mainspring may have been original (0.0176 inch thick). I replaced both mainsprings with the MS301 (3/4 x .014 by 108 inches). This nice, long mainspring makes the clock keep consistent time from fully wound to run down 7 days.
