Ansonia Queen Elizabeth Wall Clock

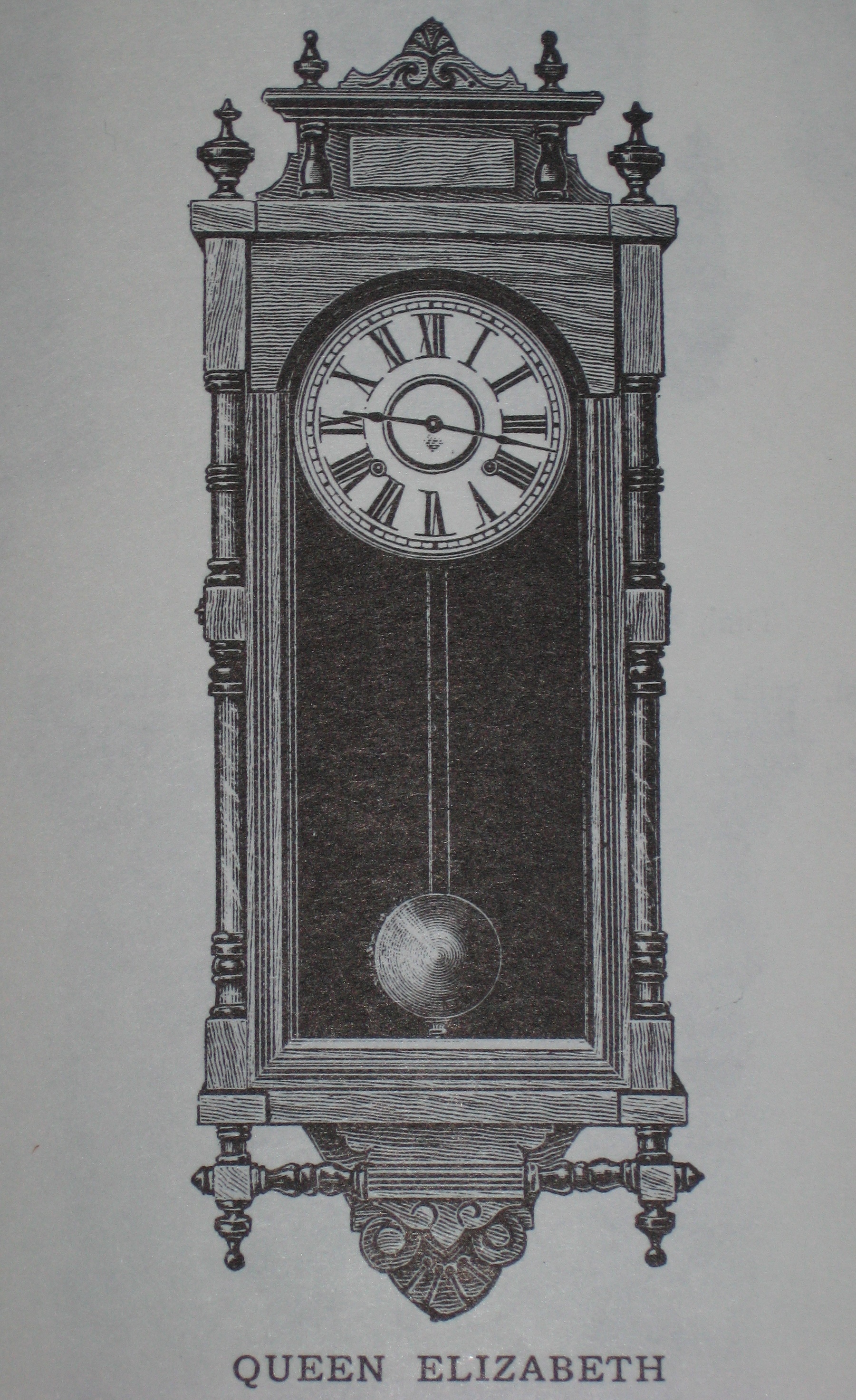

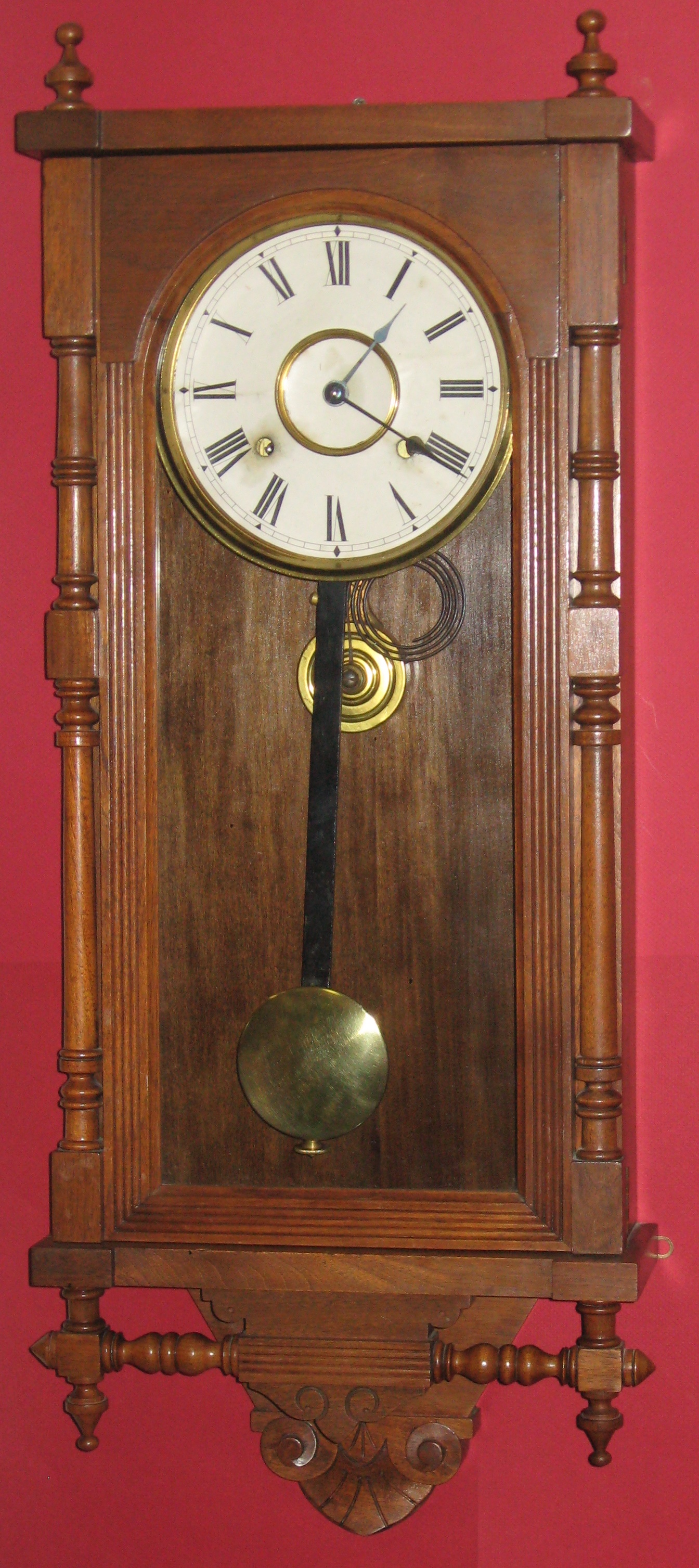

I just repaired this Ansonia “Queen Elizabeth” mahogany wall clock. The top piece to the case is not shown in the photo, but the catalog illustration below shows the complete clock. The overall height with the top is 37 inches, and the width is 13 5/8 inches. The dial in this example has a replacement paper face, and the minute hand is not original (but similar to the original).

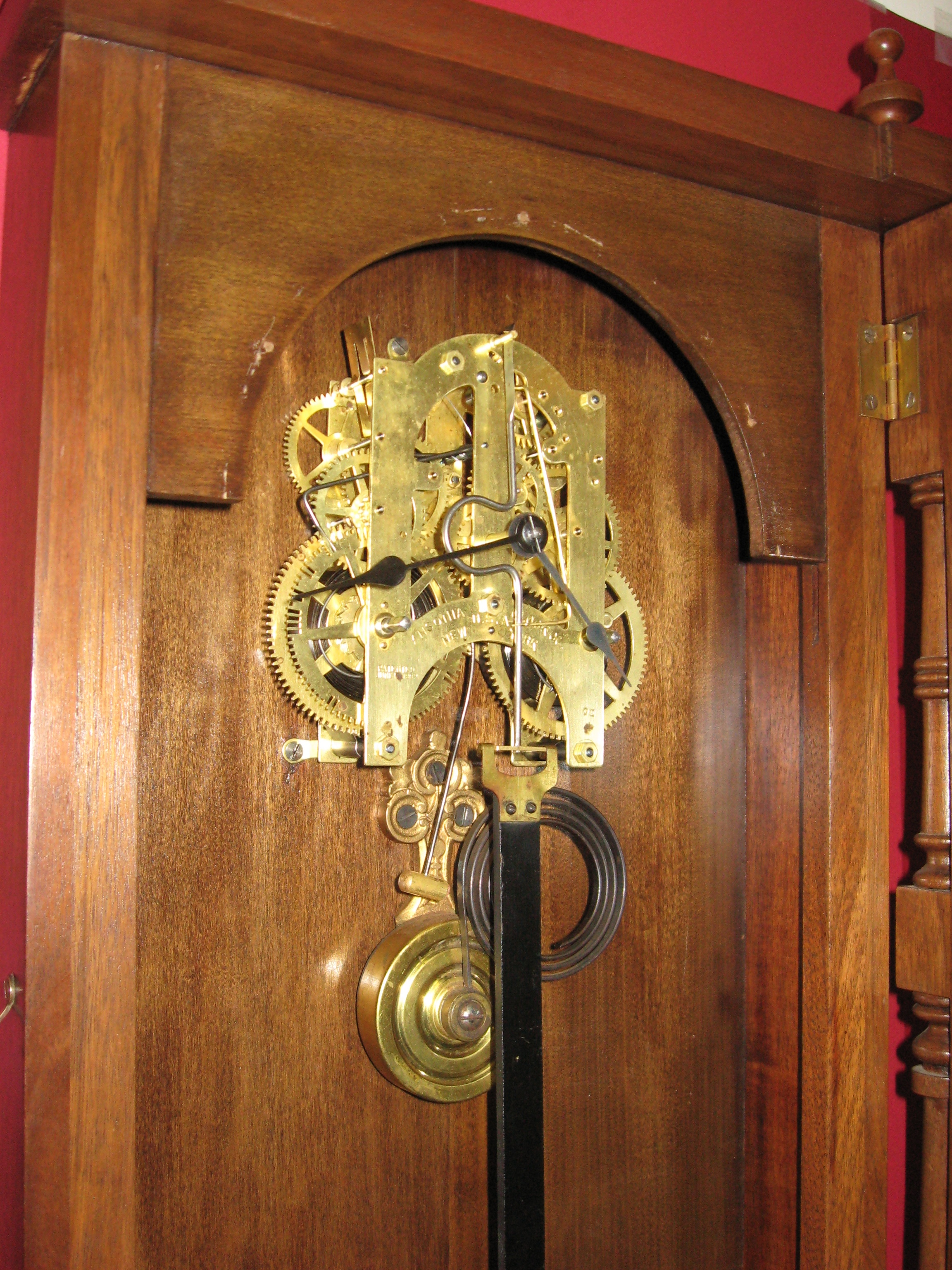

The movement is the 5-pillar Ansonia 8 day time and strike, with plate dimensions 5 7/8 by 3 5/8 inches. Repairs included polishing the pivots and replacing improper bushings (3 Rathbun and 2 screw-in) with KWM-sized American system bushings. I replaced the strike click rivet.

I retained the original strike mainspring, which measured 3/4 x 0.0175 – 0.0185 inch. The original time spring was very thick (0.019 inch) and causing mainwheel tooth wear, so I replaced it with a 3/4 x 0.016 x 120 inch mainspring, part no. 280-19-003 from Colonial Clock Shop.

See more photos.

Repair job 5634.
