Waterbury “Sussex” One-Day Shelf Clock, Inlaid Walnut Case

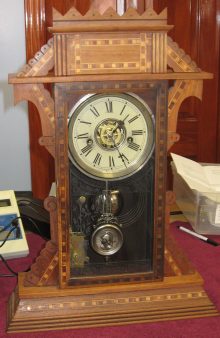

Here is a Waterbury “Sussex” one day walnut shelf clock with nice original painted dial. The inlaid caseĀ  is 17 5/8 inches tall without the top trim piece. The minute track of the dial is 4 7/8 inches diameter. The hour hand is original, except for the tip. The minute hand is a replacement.

The two original labels with name “Sussex” and with instructions, are on the back.

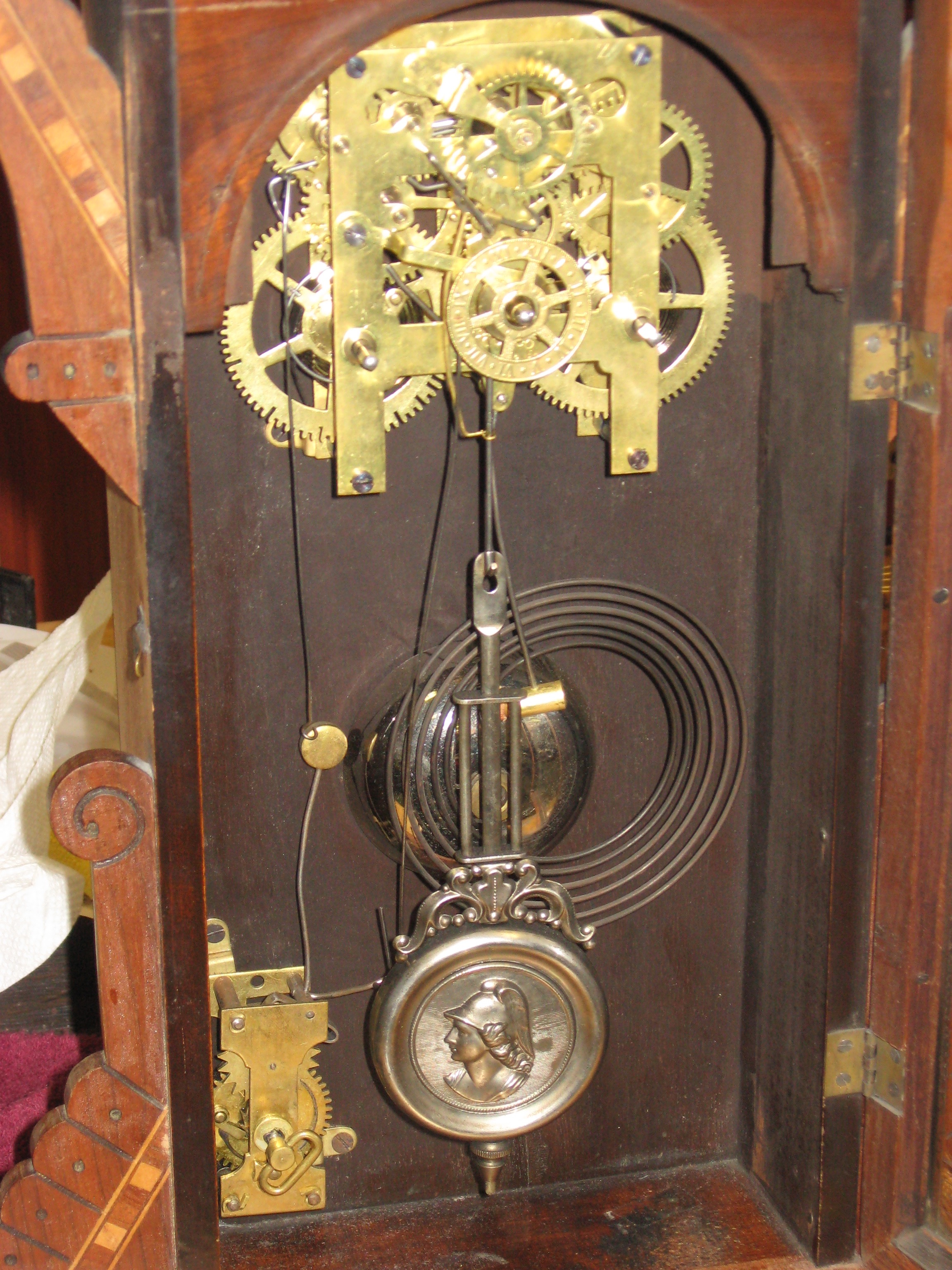

The movement was patented Sept. 22, 1874.

See more photos.

Job 6521. I installed new time and strike mainsprings 5/16 wide by .015 inch thick by 42 inches long. I also polished the pivots and installed 12 bushings.
