Seth Thomas “Adamantine” Mantel Clock with “Ding Dong” Strike

May 17, 2010 | By | 4 Replies More

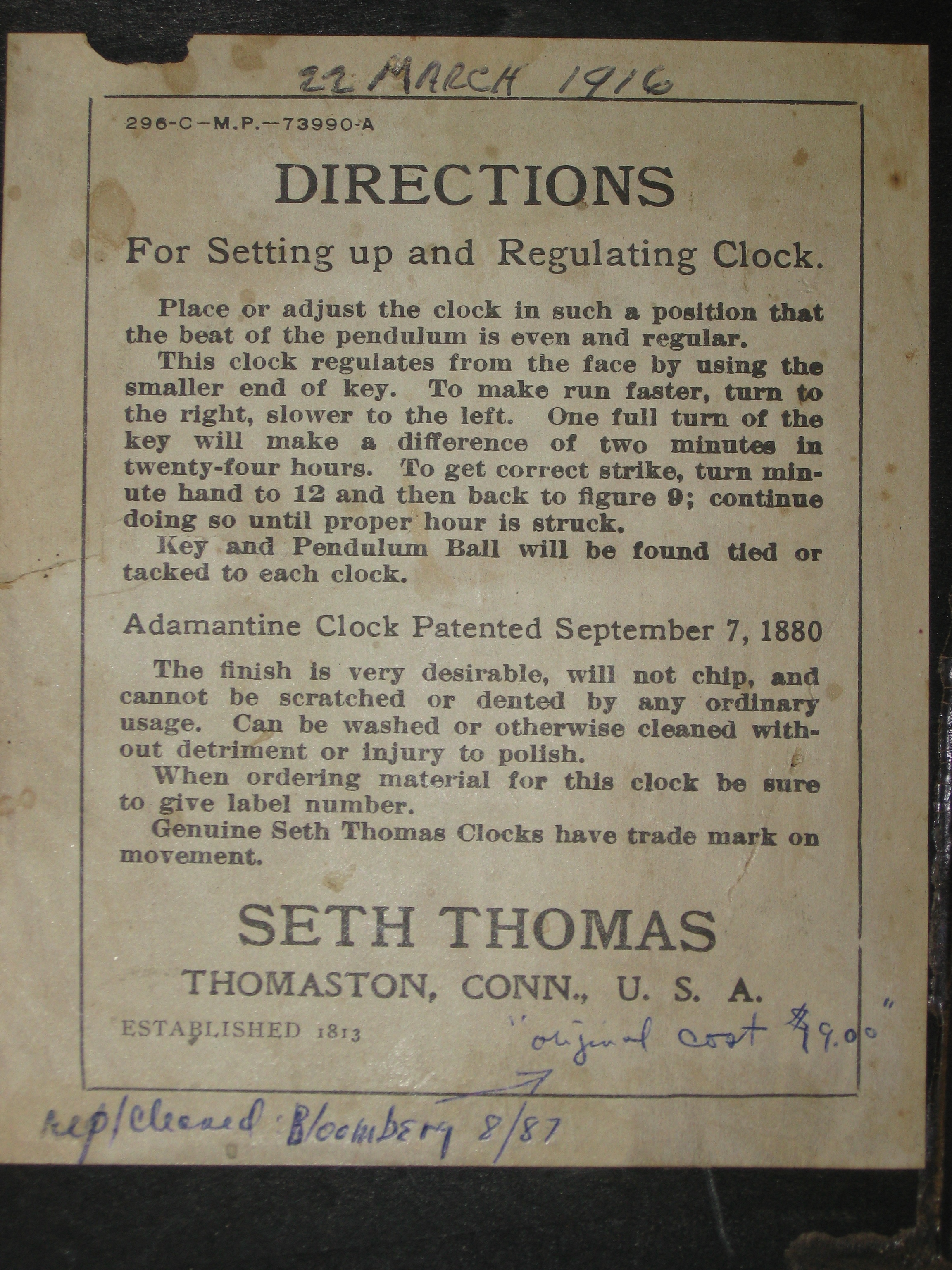

Here is a Seth Thomas “Adamantine” clock with black and green marbleized finish (Adamantine is Seth Thomas’ patented celluloid finish that was made in many colors to imitate wood and marble). It strikes the hours on two brass bells, and strikes the half hour on the higher pitched bell. The clock was sold on March 22, 1916 (22 March 1916 is written on the label on the back cover). My customer’s grandparents received this clock as a wedding gift from family members in June 1916.

The case is 18 1/8 inches wide at feet, 11 1/16 inches tall, with 4 1/4 inch time track on dial.

Below is a slideshow of more photos:

Here is a video of the clock striking:

Here is a movie of the escapement action, first run down 7 days, then fully wound:

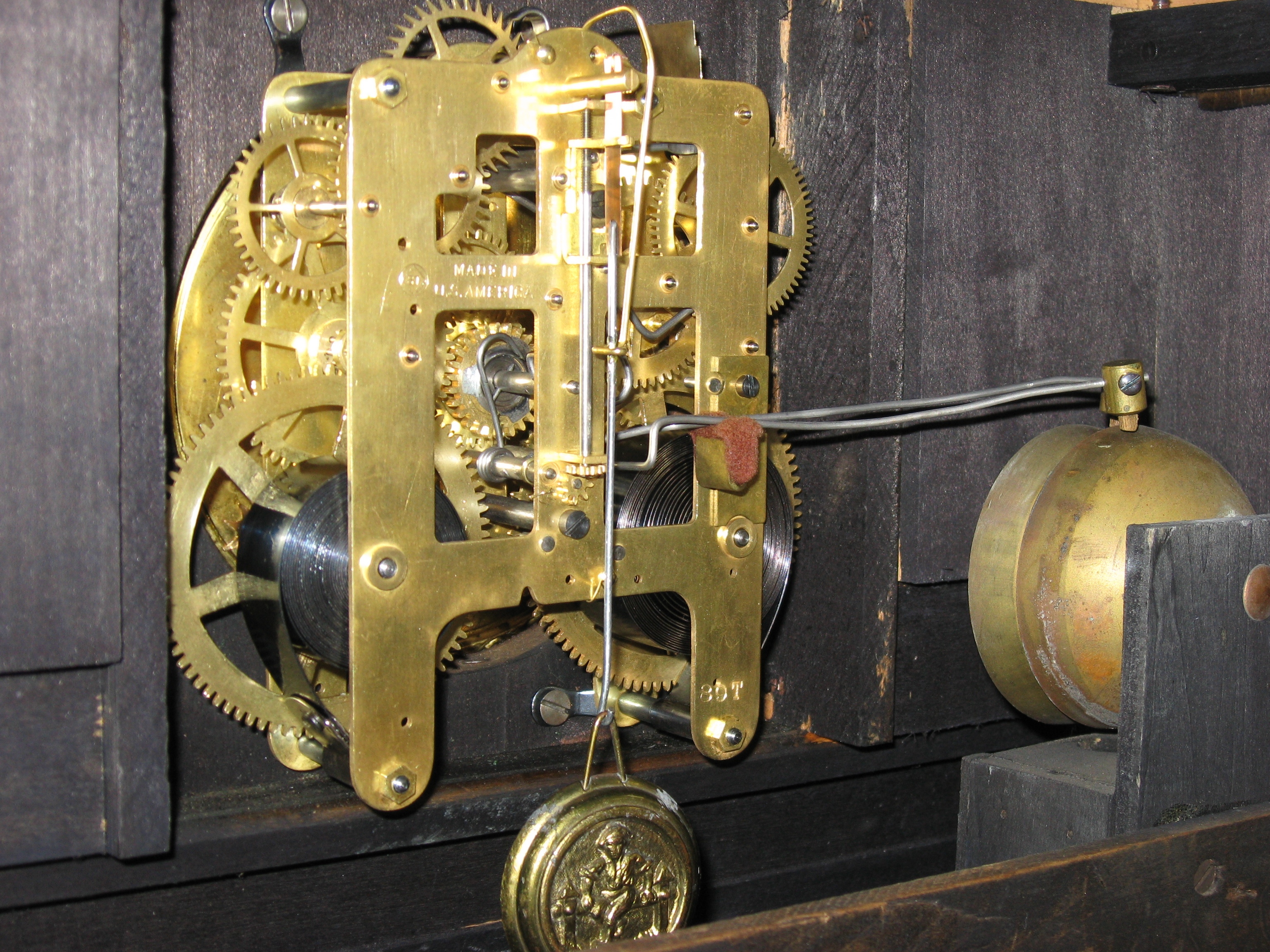

Repair job 5094. No. 89T 8-day time and bim-bam strike movement.The time mainspring is a 3/4 x 0.0172 x 96 inch mainspring from R & M Imports (opened to 8 inches when unclamped. The time spring was original, but I replaced it because it had a squeaky and jerky action which sometimes indicates it will break soon. This movement needs a slightly stronger time mainspring than the regular No. 89, as the half-hour strike hammer is lifted through a great distance. The strike mainspring is the original (marked ST) 3/4 x 0.0165 inch spring. It opened out to only 6 inches in diameter when uncoiled, yet provides plenty of power to operate the striking for over 8 days.

Share this post:


Tags: , ,

Category: American Clock Mainsprings, American Clock Repair

Last updated: May 29, 2010
