Schatz Standard 400 Day Restoration – Before & After

Here is a Schatz standard 400 day clock made in December 1952. It looked pretty bad to start with, but came out looking superb! I did a lot of polishing, and replaced the bezel (the original was dented). I replaced one gear (T3) that had bad rust on its pinion.

The enamel dial had rust stains and I wasn’t sure it would clean up. I removed the bezel and cleaned the dial in my clock cleaning fluid, and it came out looking like new!

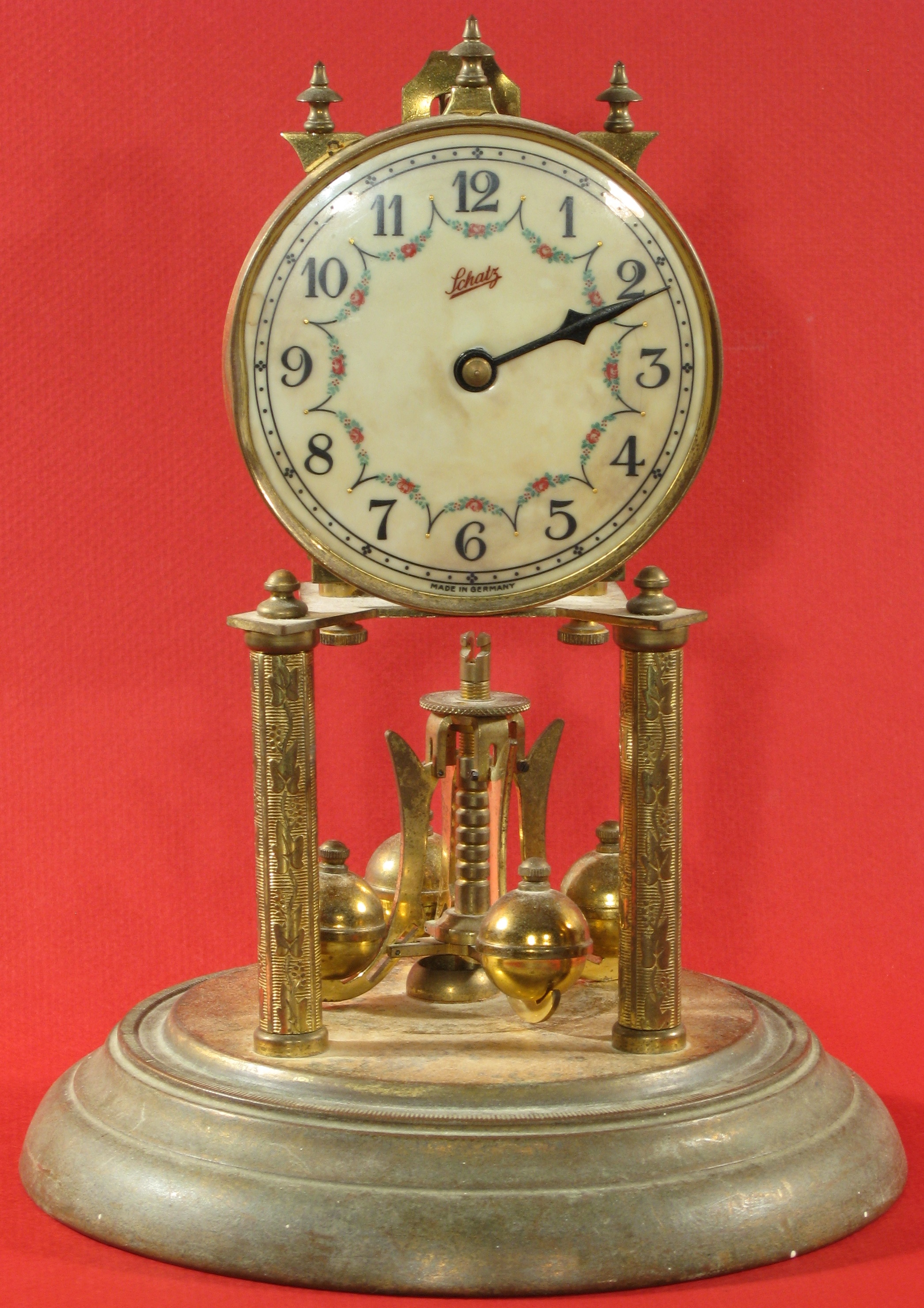

IMG_6529

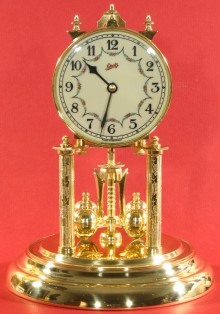

IMG_6571

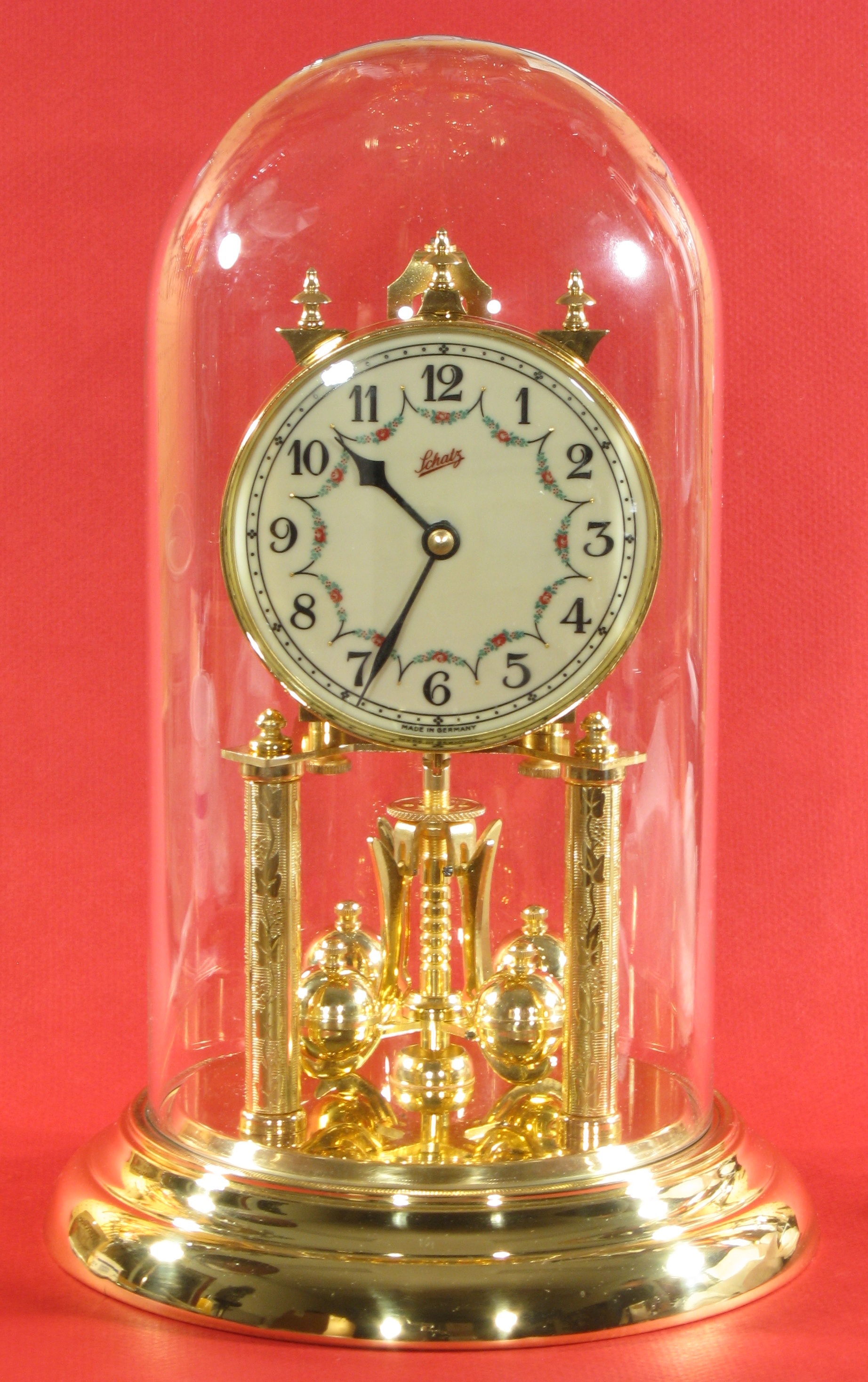

IMG_6581

See more photos.

Repair job 6236. Polished the pivots, replace the suspension spring and lower suspension block, polished the leaves of T2 (had surface rust). I also supplied a glass dome. Movement date code 12 52. .004 inch thick Horolovar suspension spring.
