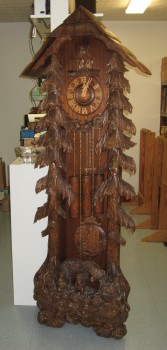

Here’s a clock I’d never seen before – a grandfather cuckoo clock. It is 83 inches tall and 30 1/2 inches wide. The minute hand is 4 11/16 inches long.

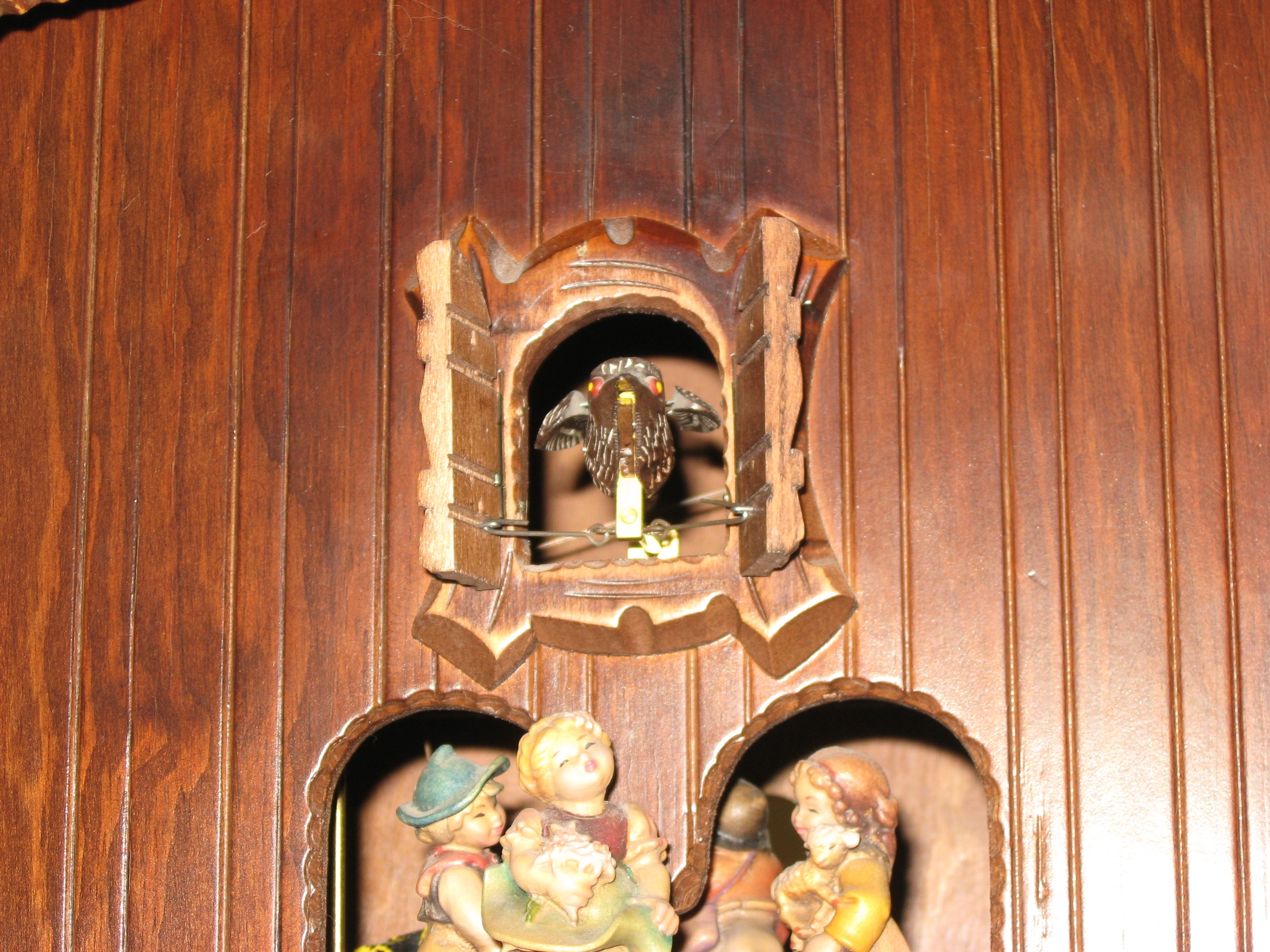

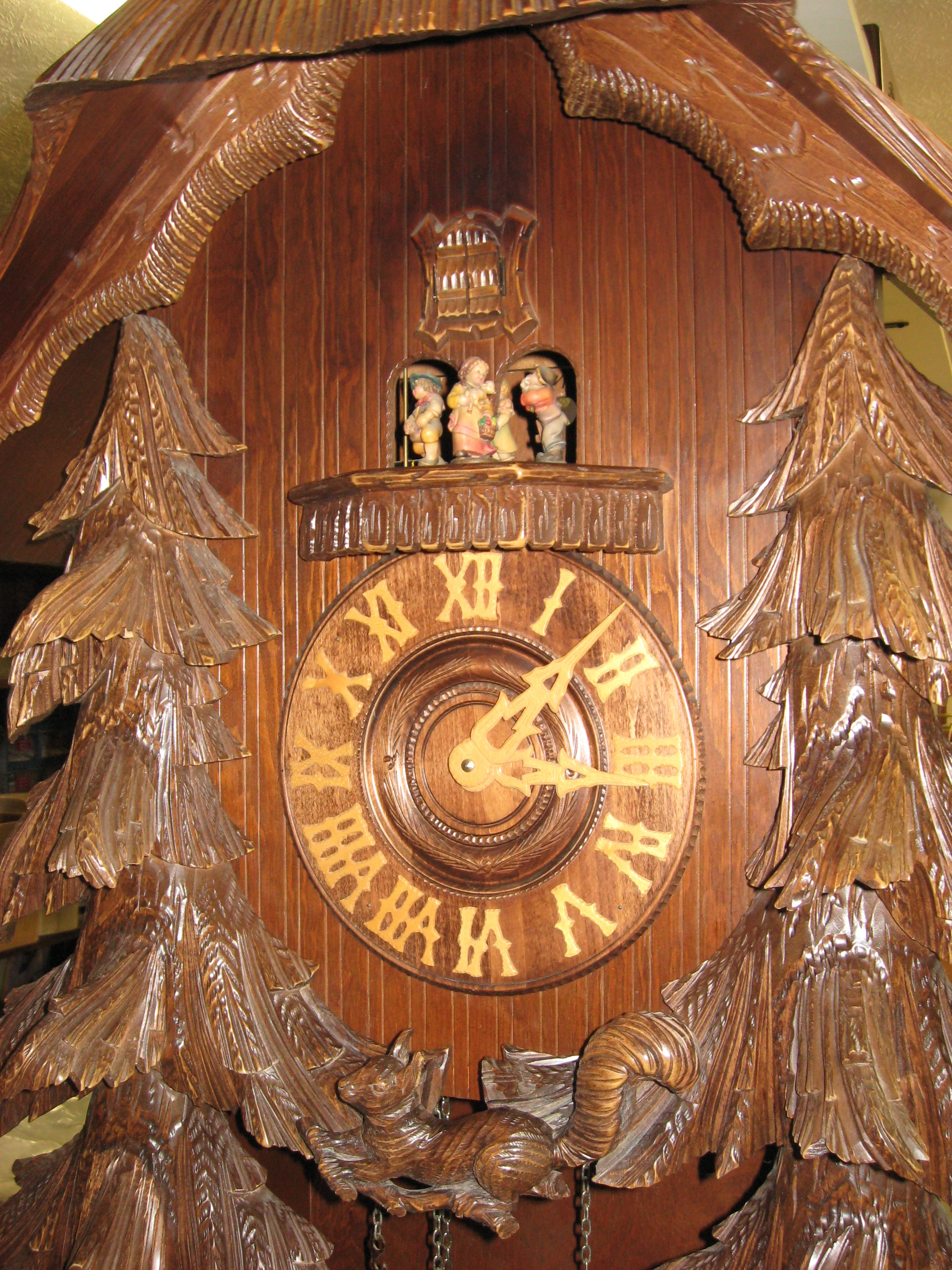

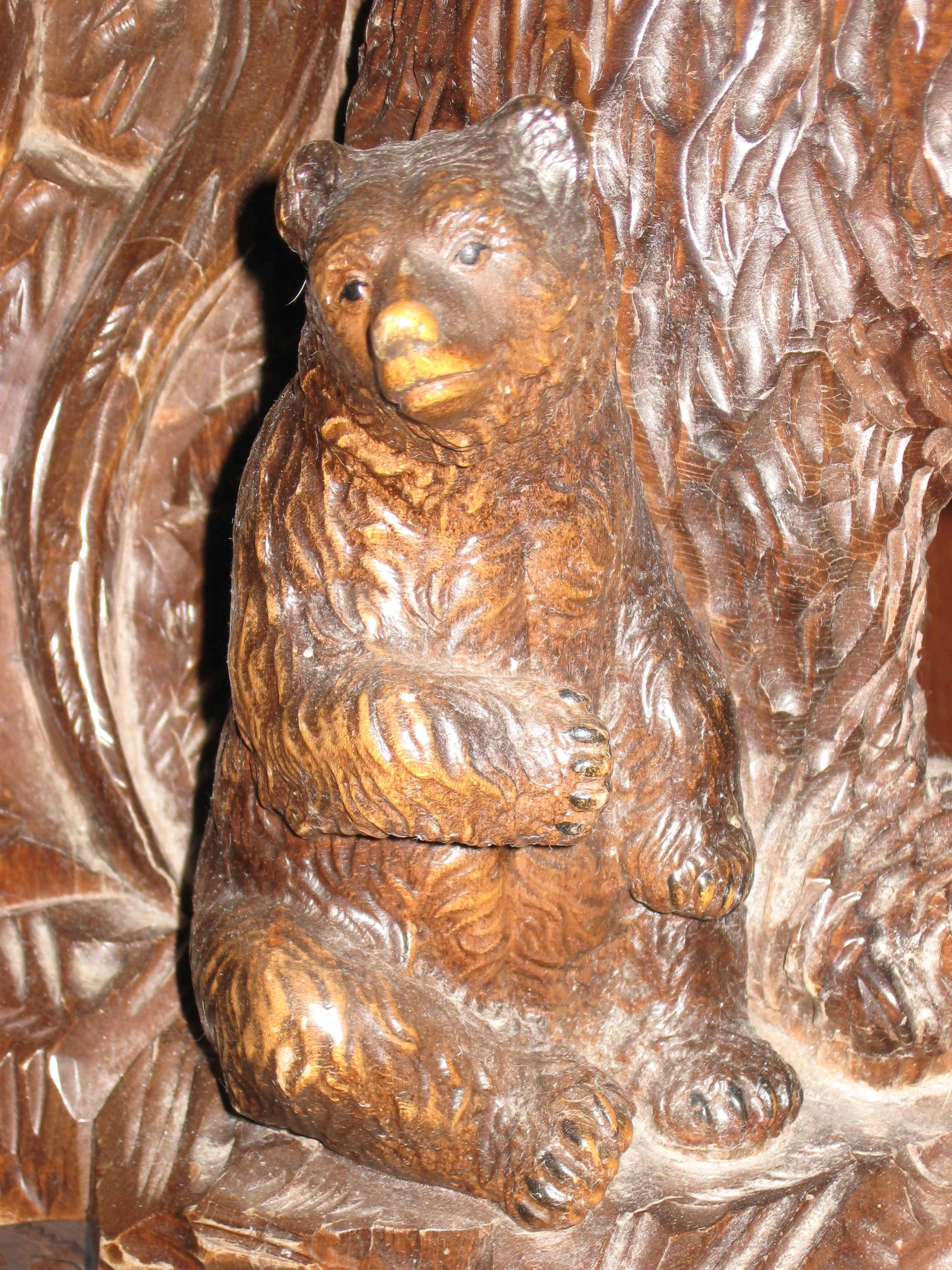

The case is highly carved. It has pine tree carvings on each side of the front, a squirrel in the trees below the dial, a thatched roof, and at the bottom, a mother bear watching her cubs. A cuckoo bird comes out and cuckoos the hour and half-hour. After the hour cuckoo, a very rich-sounding 72 note music box plays 1 of 3 tunes while the dancers turn in the balcony. The label on the back says “Dold Esquisit GmbH”, and another label gives the names of the 3 tunes.
This clock is about 30 years old. The same clock is sold today, but with a simplified movement. The new ones don’t cuckoo or have the wonderful music box, but instead have Westminster, Whittington or St. Michael chimes like a standard grandfather clock.
Repair job 7234. The movement is a Kieninger from Germany. It is a grandfather clock movement modified so that the strike train runs the music box, and the chime train does the cuckoo.The heaviest weight goes on the left (for the cuckoo) and the lightest weight goes on the right (for the music).
I polished the pivots and installed 6 bushings. The parts that move the cuckoo bird out and in needed polishing, as some parts were rough from the factory. The main point in getting the cuckoo bird to go out and in with no friction is to position the rod that carries the bird so that it “floats” in the hole of the guide bracket. If it rests on the bottom of the hole, the cuckoo train will stall.
