Seth Thomas Beehive Mantel Chime Clock with No. 124 Movement

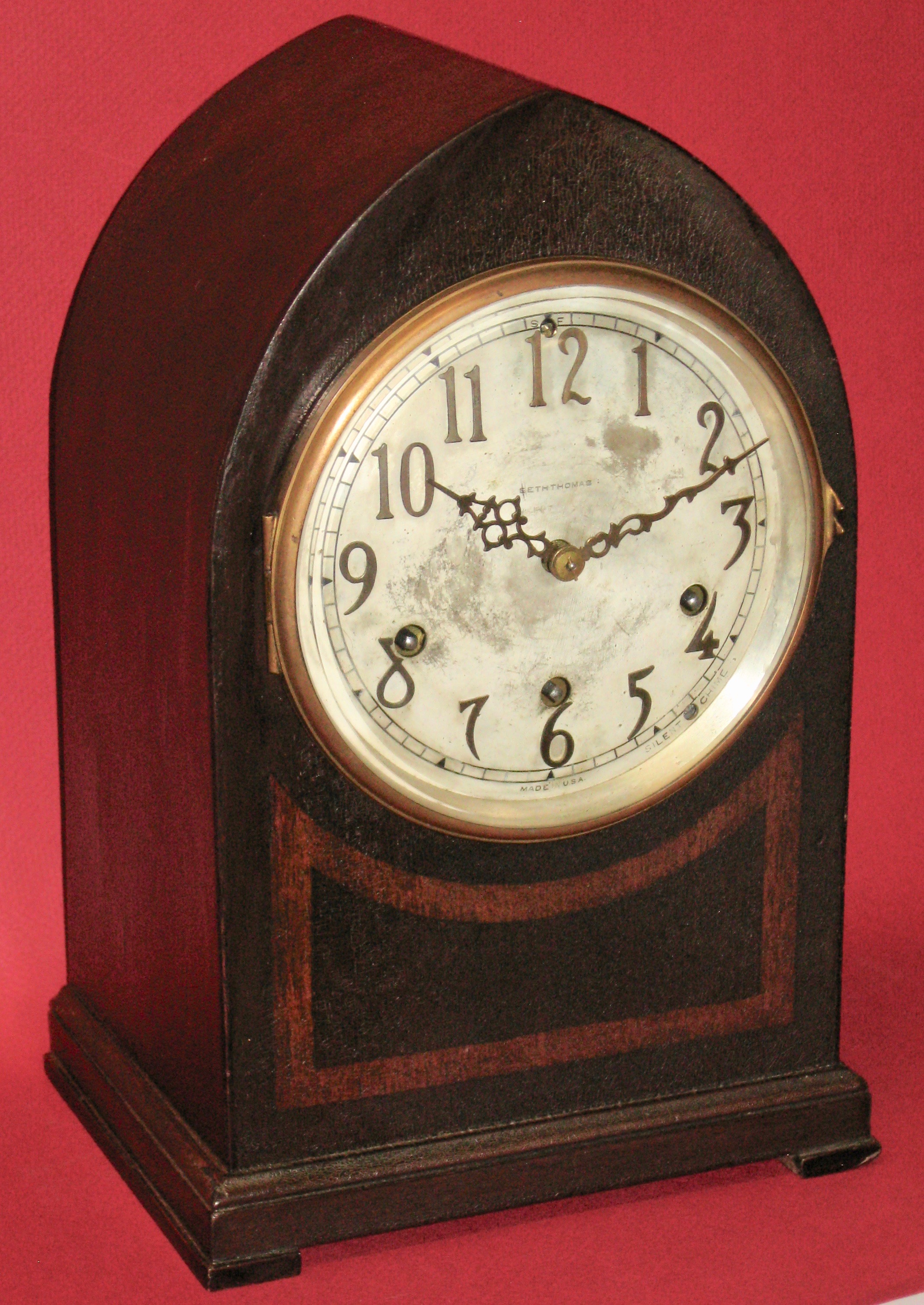

I repaired this Seth Thomas “beehive” mantel clock from the 1930s. It is 11 3/16 inches tall, 7 1/4 inches wide, with a 4.5 inch dial (outside diameter of minute track) and a 2 5/16 inch long minute hand. The dial is silvered engraved brass with applied numerals.

See more pictures.

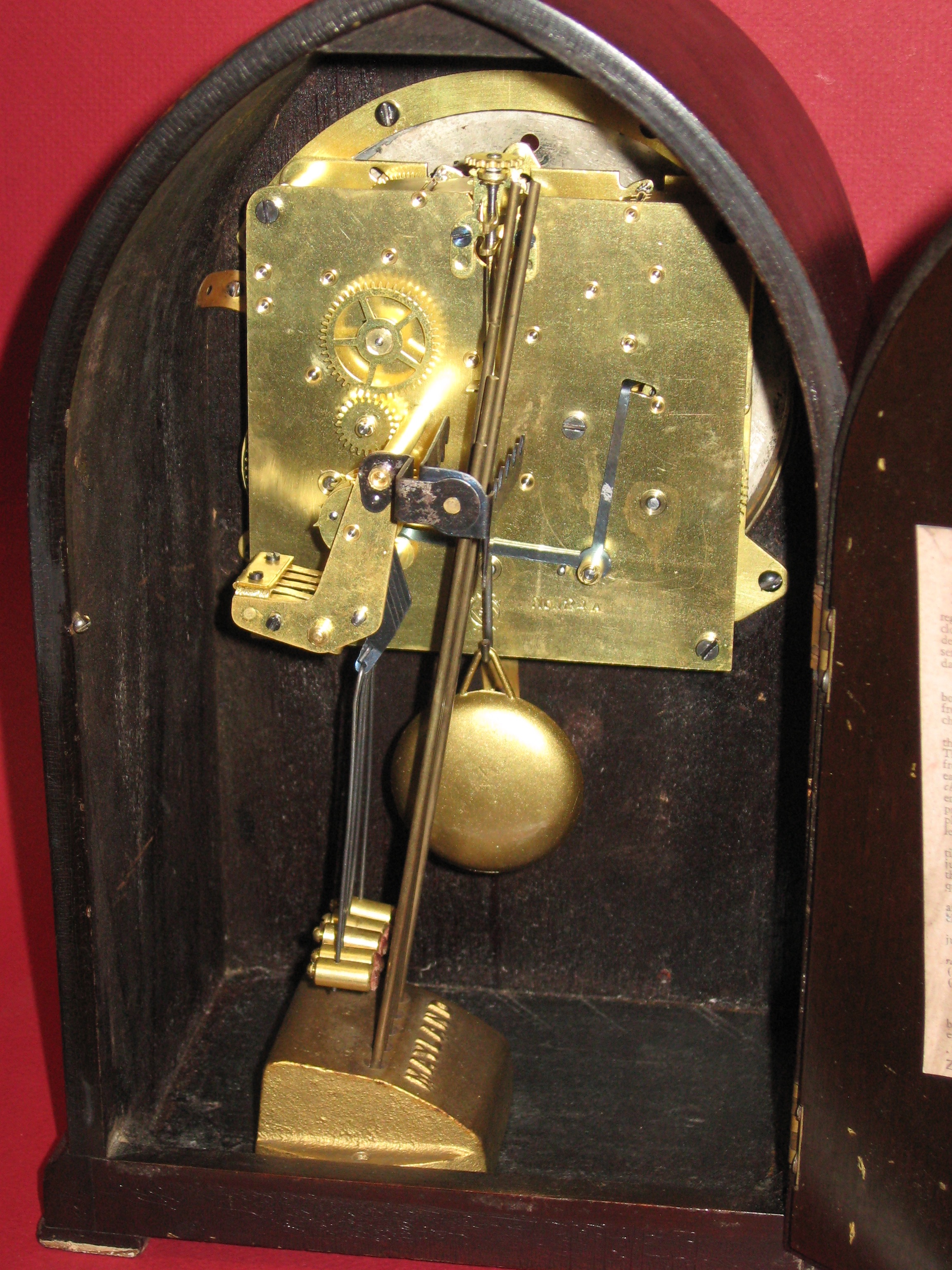

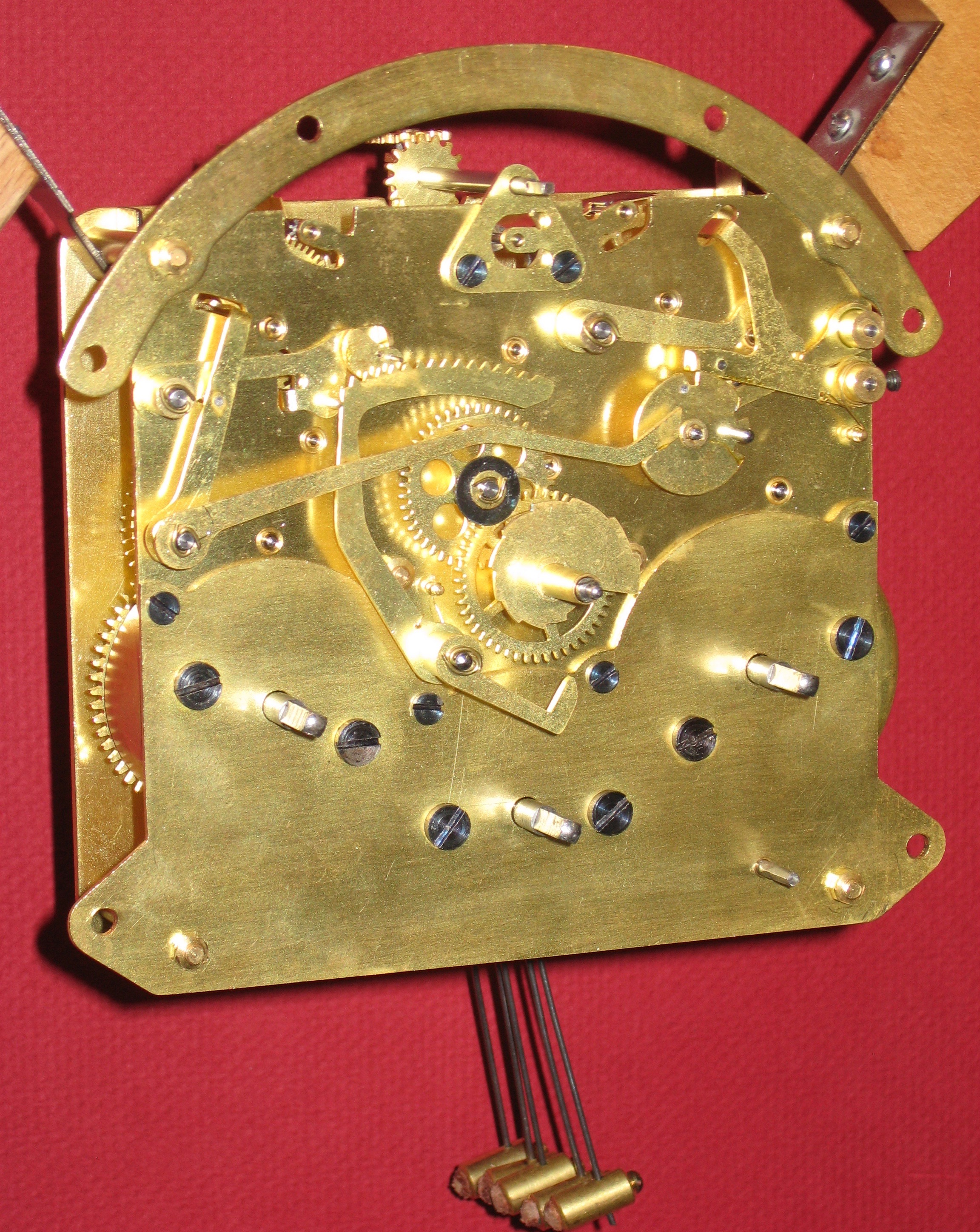

The No. 124 movement plays the Westminster chime every quarter-hour, and strikes the hour after the hour chime. Seth Thomas made the No. 124 movement from ca. 1924 to 1956. Repairing the No. 124 takes a lot of time because there are lots of gears ( and thus many pivots to polish and burnish), but they are great running clocks when properly repaired.

Repair job 7426. I straightened 3 bent pivots, polished and burnished the pivots, and installed 32 bushings.
