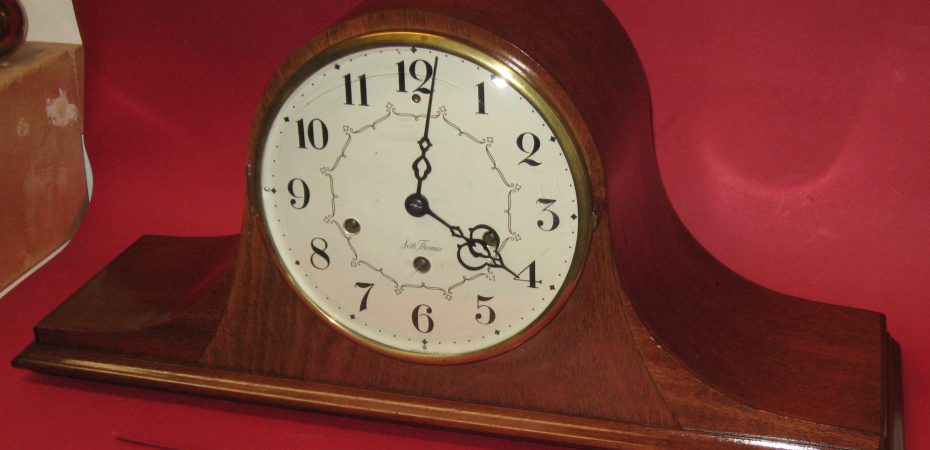

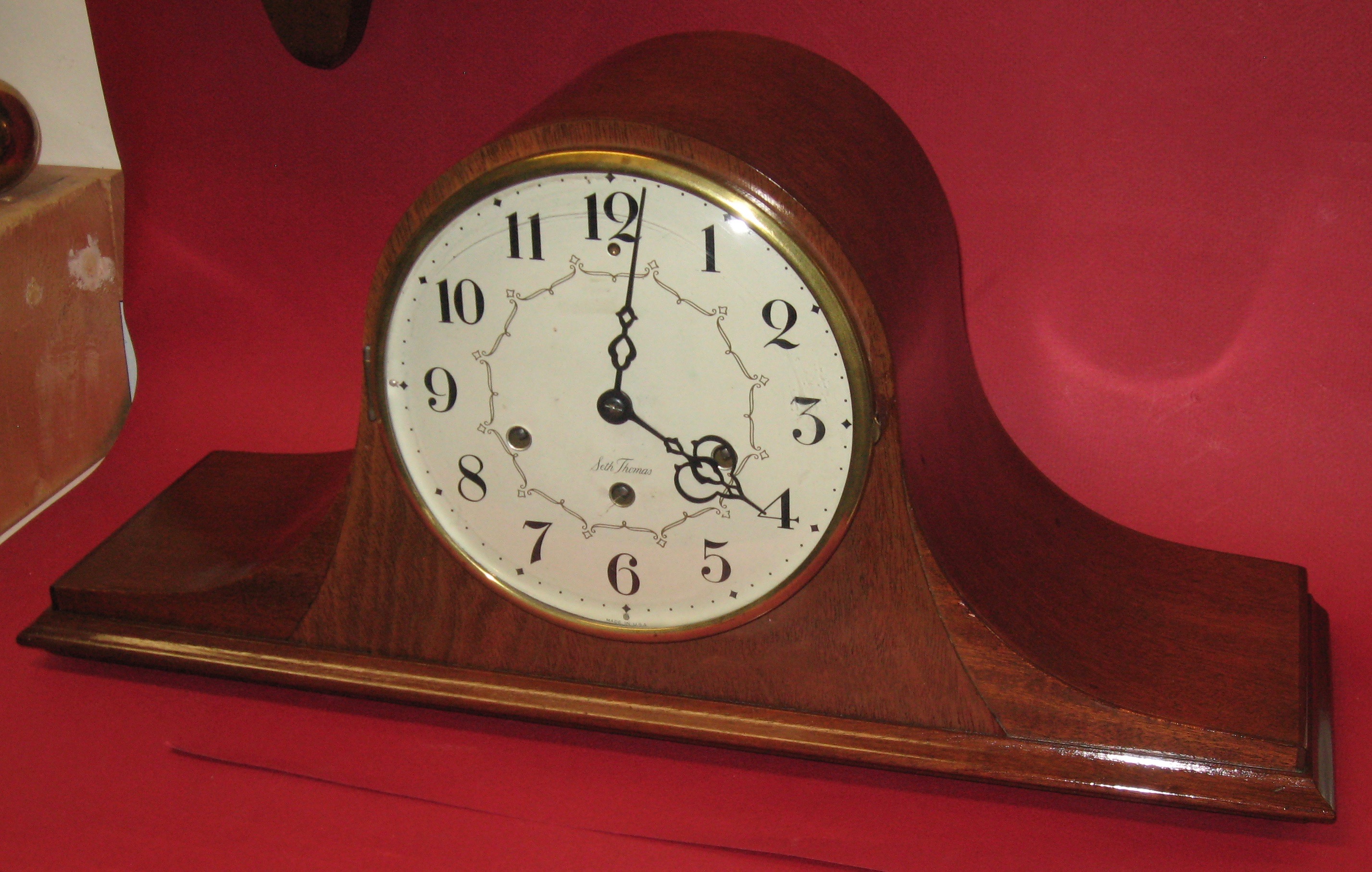

I repaired this Seth Thomas “Medbury” chiming mantel clock in a mahogany tambour case. The case is 19 7/8 inches wide, 9 1/4 inches tall, and the minute hand is 3 1/8 inches long.

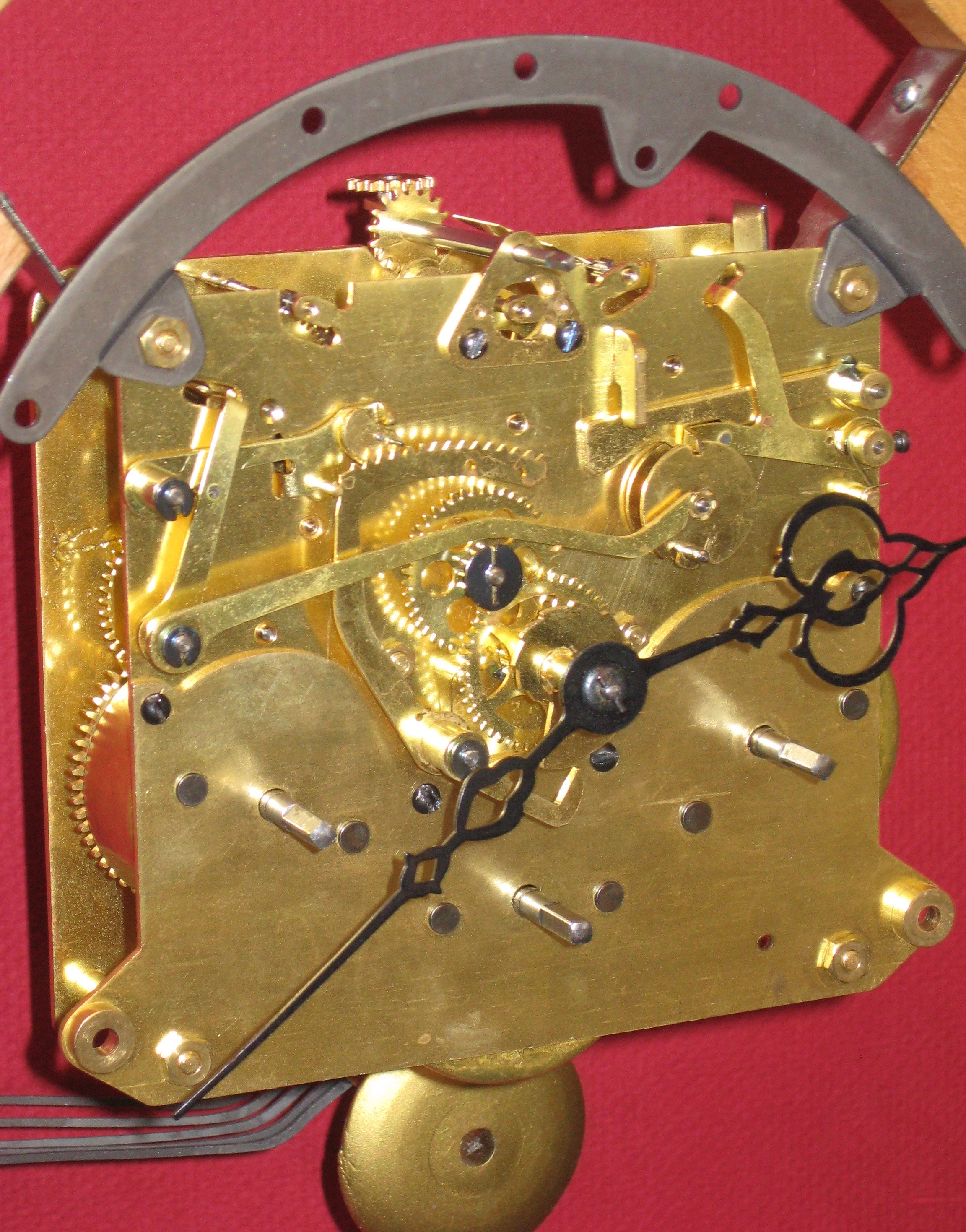

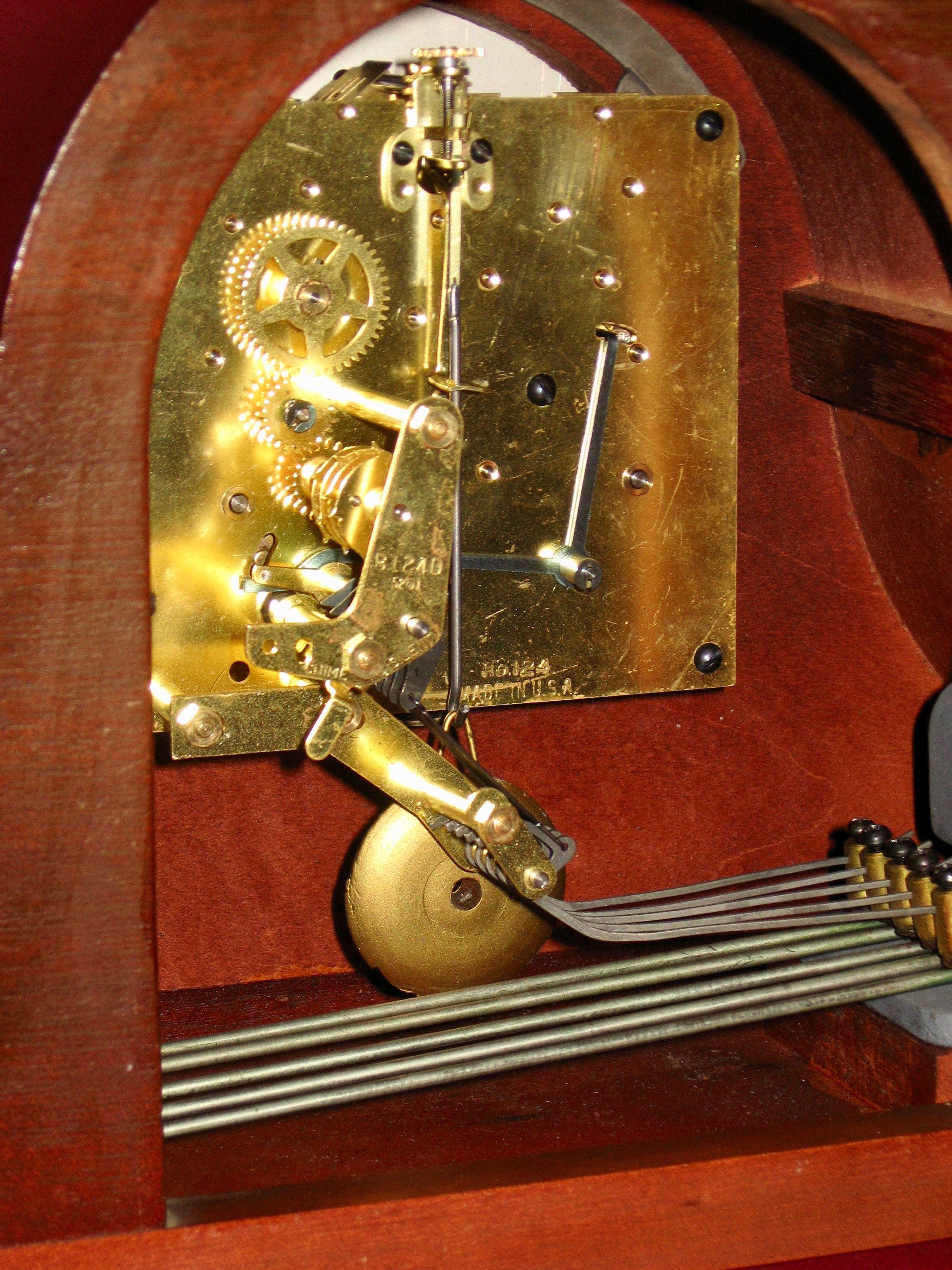

The movement is the No. 124 Westminster chime movement with date code 5201 (January 1952). The instruction label on the back door has the date code 5303 (March 1953).
Repair job 7463. I polished the pivots, installed 27 bushings (yes, this movement has lots of gears!), and replaced the time mainspring.
The pendulum bob weighs 3 ounces, is 1 5/8 inches diameter, and has a hole in the center.
