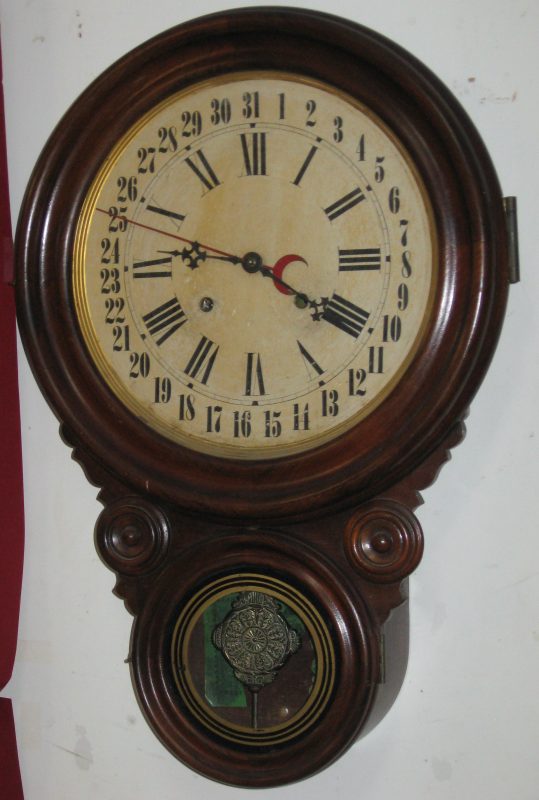

Ingraham Wall Clock, Similar to the Ionic

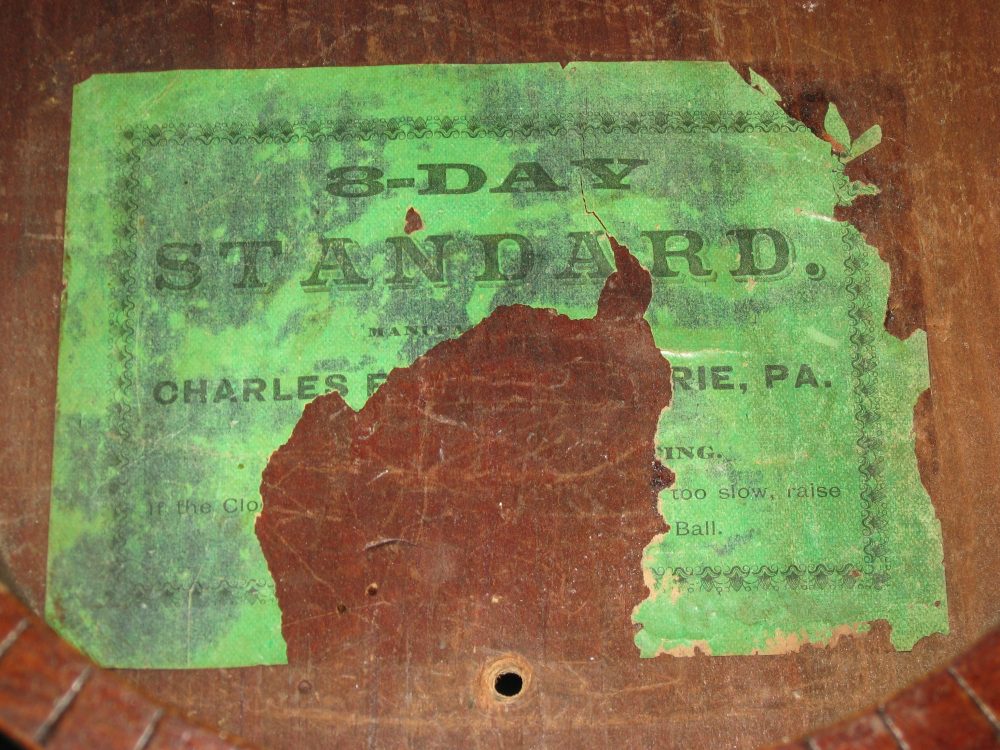

This Ingraham wall clock is similar to their Ionic, but has scrollwork sides along with the rosettes. Inside the backboard is a green label saying:

8-Day
STANDARD.

MANUFACTURED BY
CHARLES F. ADAMS, ERIE PA.
DIRECTIONS FOR REGULATING.
If the clock runs too fast, lower the Ball, if too slow raise
by means of the Nut under the Ball.

Note: part of the label on this clock is missing, but I saw a similar one on eBay and got the missing text from that.

I don’t see this case design in Tran Duy Ly’s Ingraham book, so perhaps it was a custom design for Charles F. Adams?

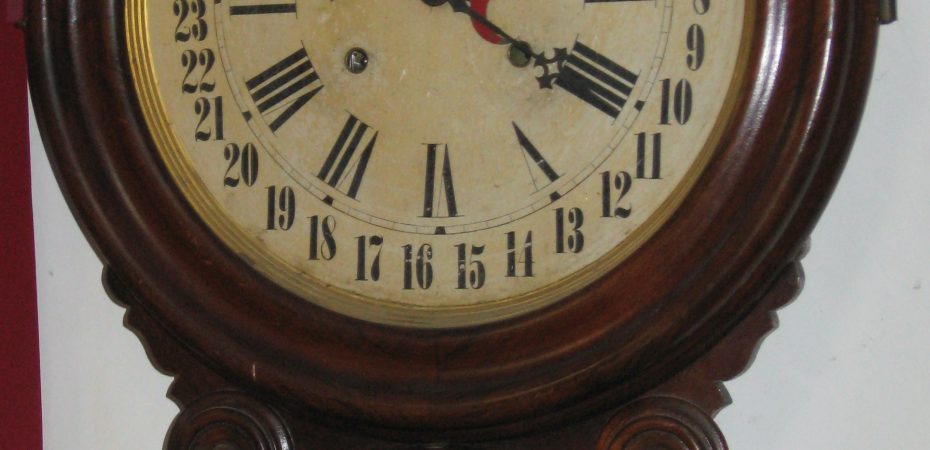

This 8-day clock strikes the hours (most clocks of this period don’t do half hour strike, that came later), and has “simple” calendar work with a red hand showing the day of the month. On months of less than 31 days, the calendar hand needs to be set manually ahead the morning or afternoon of the first day of the new month.

The movement is stamped “E. Ingraham Co.”, the company under this name was in business from 1884 to 1958. The patent dates Oct. 8 79 and Nov. 11 79 (where “79” is 1879) are stamped into the front plate below “E. INGRAHAM CO.” and above “BRISTOL, CONN.” Thus the clock must have been made in 1884 or later, probably sometime up to ca. 1890 or 1900.

See more pictures.

Repair job 8551. The original mainsprings were 3/4″ wide by 0.019″ thick. This is on the thick side, although thickness isn’t usually a problem with very old springs of weaker material. The time mainwheel teeth are about 20% worn. I replaced both mainsprings with thinner, longer springs. They are 3/4 x 0.014 x 108″, and run the clock very well.

I polished the pivots and installed 10 bushings, installed new click rivets, and adjusted the escapement.
